Fibra optica FTTH 1 fibra cu sufa, manta LSZH, tambur 1000m, Safer 1FTTH-1K
|
Adauga intrebare
Produs indisponibil
Descriere
Descriere produs

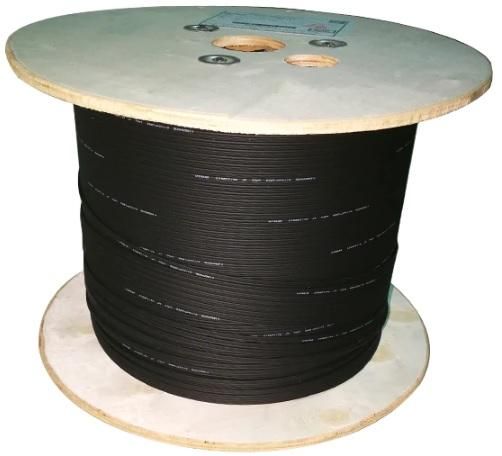

Fibra optica FTTH 1 fibra cu sufa - Tambur 1000m
Specificatii:
- Model: 1FTTH-1K
- Lungime: 1 km
- Fibra: 1× 9/125 (G.657A2), culoare naturala
- Atenuare: ≦ 0.4 dB @ 1310 nm, ≦ 0.3 dB @ 1550 nm
- Raza minima de indoire: 120 mm
- Raza minima de indoire (fara sufa): 10 mm (static), 25 mm (dinamic)
- Manta: material LSZH, culoare neagra
- Sufa de sustinere: ⌀ 1mm
- Forta de tractiune pe termen scurt: 600 N
- Rezistenta la rupere N/100 mm: 2200
- Temperatura de operare: -20℃ ~ +70℃
- Greutate: ~17.5 Kg/km
Specificatii tehnice
Specificatii tehnice
- Garantie -
- Brand Safer
| Cod | 1FTTH-1K |
| Culoare fibra | Natural |
| Tip Fibra | 9/125 (G657A2) |
| Culoare manta | Negru |
| Material manta | LSZH |
| Coppered Steel wire diameter (mm) | 0.45 |
| Grosime sufa | 1.0 |
| Dimensiune cablu (mm) | 5.2(±0.1)*2.0(±0.1) |
| Greutate(Kg/km) | 21 |
| Min. bending radius (mm) (Along the cable flat direction) | 15(static) ;30(dynamic) |
| Atenuare (dB/km) | ≦0.4 at 1310nm, ≦0.3 at 1550nm |
| Temperature Dependence Induced Attenuation (－40℃ to ＋60℃) (dB/km) | ≤0.04 |
| Short tension (N) | 600 |
| Short crush (N/100mm) | 2200 |
| Operation temperature (℃) | -40~+70 |
| Installation temperature (℃) | -5~+60 |
| Transportation and storage temperature (℃) | -40~+70 |
