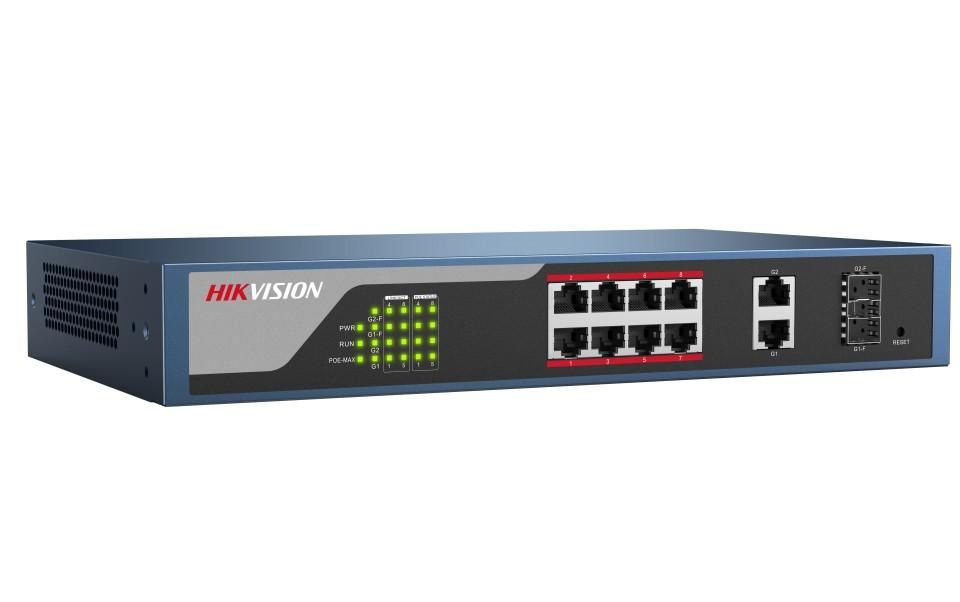

Switch PoE 8 canale Hikvision 125W, DS-3E1310P-SI
Descriere
Descriere produs
DS-3E1310P-SI este un switch cu 8 porturi de 10/100 Mbps si 2 porturi de 1000 Mbps PoE de la Hikvision cu management. Acest dispozitiv ofera fiabilitate chiar si in cele mai dificile conditii si are protectie impotriva supratensiunii 4 kv. Transmite alimentare PoE si receptioneaza date prin cablu UTP Cat5 la 200 de metri catre camerele IP Hikvision.
Caracteristici
Numar porturi PoE: 8 porturi 10/100 Mbps.
Putere PoE: total 123W - 15W/port max. 30W/port.
Mod functionare: Standard (100m) / mod EXTENDED (250m).
Protectie: ESD descarcari electrice anti-interferente.
Capacitate switch: 5.4 Gbps.
Tensiune alimentare: 100~240 V AC.
Porturi Uplink: 2 x RJ45 10/100/1000Mp 2 x SFP 1000 Mbps (Multiplex).
Consum: max. <127 W.
Management: SNMP v1/v2 WEB management.
Putere PoE: 123 W.
Frecventa: 50/60 Hz.
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- EAN 6941264078388
- Ecotax 0.8
- Brand Hikvision
| Porturi | 8x RJ 45 10/100 Mbps 2x RJ45 10/100/1000 Mbps 2x 1000 SFP Mbps (multiplex) |
| Adrese MAC | 4k |
| Putere maxima | 123W (30W/port) |
| Putere consum | ≤150W |
| Dimensiuni mm | 294 x 165.8 x 44 |
| Temperatura operare | 0 ºC to +40 ºC (+32 ºF to +104 ºF) |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE802.3x, IEEE802.3z |
| Port PoE | Port 1 - 8 |
| Standard PoE | IEEE 802.3af, IEEE802.3at |
| Putere sursa | 100 to 240 VAC, 50/60Hz |
