Switch Gigabit 48 porturi PoE+470W cu Management L2 + 4 SFP TL-SG2452P
Descriere
Descriere produs

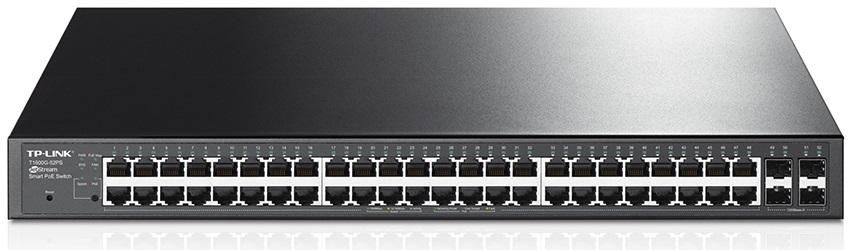

Switch Gigabit 48 porturi PoE+ 470W cu Management L2 + 4 SFP TL-SG2452P
Suporta 48 de porturi 802.3at/af-compliant PoE+ cu o putere totala de alimentare de 384W.
Caracteristici L2+ Static Routing, ajuta la o mai buna gestionare a resurselor interne de retea
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X si autentificare Radius ofera strategii robuste de securitate.
Functiile L2/L3/L4 QoS si IGMP Snooping ajuta in optimizarea aplicatiilor de voce si video.
Ofera suport pentru functiile Dual Stack IPv6, MLD Snooping, IPv6 Neighbor Discovery.
Managament WEB/CLI, SNMP, RMON si Dual Image.
T1600G-52PS ofera 48 de porturi 10/100/1000Mbps RJ45 care suporta 802.3at/af, cu un total de putere PoE de pana la 320W, puternic si suficient de flexibil pentru ca utilizatorii sa poata implementa Access Point-uri wireless sau camere de supraveghere IP. Switchul vine echipat cu 4 sloturi SFP Gigabit, oferind flexibilitate retelei. In plus, acesta ofera performanta ridicata, QoS la nivel enterprise, strategii avansate de securitate si management Layer 2 si Layer 2+.
Routarea statica ajuta la folosirea mai eficienta a resurselor retelei. Functia Storm Control protejeaza impotriva Broadcast, Multicast si Unknown unicast Storm. 802.1X si Autentificarea Radius permite clientilor sa se autentifice cu ajutorul unui Server Radius extern. Quality of Service (QoS, L2 to L4) ofera capabilitati de gestionare imbunatatita a traficului pentru a muta datele mai usor si mai rapid. Mai mult decat atat, interfetele de management web usor de utilizat, impreuna cu SNMP, RMON si Dual Image, inseamna configurare mai rapida si configurare cu mai putine intreruperi. Cu toate aceste caracteristici avansate switch-ul JetStream Gigabit Smart PoE+ T1600G-52PS este o alegere ideala pentru proiecte sau retele de afaceri care au nevoie de functia PoE.
Power Over Ethernet Compatibil IEEE 802.3at/af
T1600G-52PS ofera 48 de porturi 10/100/1000Mbps RJ45 care suporta PoE 802.3at/af cu o putere totala de 384W pentru a alimenta orice dispozitiv 802.3at/af. Compact si flexibil, T1600G-52PS este ideal pentru a folosi Poe pentru a implementa access point-uri wireless sau camere de supraveghere de retea bazate pe IP pentru proiecte sau retele de afaceri mici.
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- Ecotax 0.8
- Brand Tp-Link Omada
| Standarde si Protocoale | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interfata | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Gigabit SFP Slots |
| Retea media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Numar ventilatoare | 3 |
| Alimentator | 100~240VAC, 50/60Hz |
| Consum Energie | Maximum (PoE on): 470.4W (220V/50Hz) Maximum (PoE off): 46.5W (220V/50Hz) |
| Porturi (RJ45) PoE+ | Standard: 802.3at/af compliant PoE+ Ports: 48 Ports Power Supply: 384W |
| Dimensiuni (L x l x H) | 17.3 x 13 x 1.73 in. (440 x 330 x 44 mm) |
| Montare | Rack Mountable |
| Consum maxim | 47.57W (110V/60Hz with no PD connected) 485.7W (110V/60Hz with 384W PD connected) |
| Max Heat Dissipation | 162.31 BTU/h (with no PD connected) 1657.21 BTU/h (with 384W PD connected) |
| Bandwidth/Backplane | 104Gbps |
| Packet Forwarding Rate | 77.4Mpps |
| Tabela Adrese MAC | 16K |
| Jumbo Frame | 9KB |
| CARACTERISTICI SOFTWARE | |
| Calitatea Serviciului | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting IPv6 QoS* Voice VLAN |
| Caracteristici L2 si L2+ | Static Routing DHCP Relay* IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control LLDP, LLDP-MED* |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN |
| Lista Control Acces | L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports IPv6 ACL* |
| Securitate | AAA* Port Security DHCP Snooping IP-MAC-Port Binding ARP Inspection 802.1x and Radius Authentication SSH v1/v2 SSL v3/TLSv1 Broadcast/Multicast/Unknown-unicast Storm Control Dos Defend |
| IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
| Aplicatii IPv6 | DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Dual Image *Aceste functii vor fi suportate dupa un update de firmware. |
| Certificari | CE, FCC, RoHS |
| Continut Pachet | T1600G-52PS Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
| Cerinte de sistem | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
| Mediu | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
