Switch 8 porturi PoE, Cloud Managed, Dahua CS4010-8ET-110
PRP: 677 , 99 Lei
Diferenta: 251 , 00 Lei
Descriere
Descriere produs

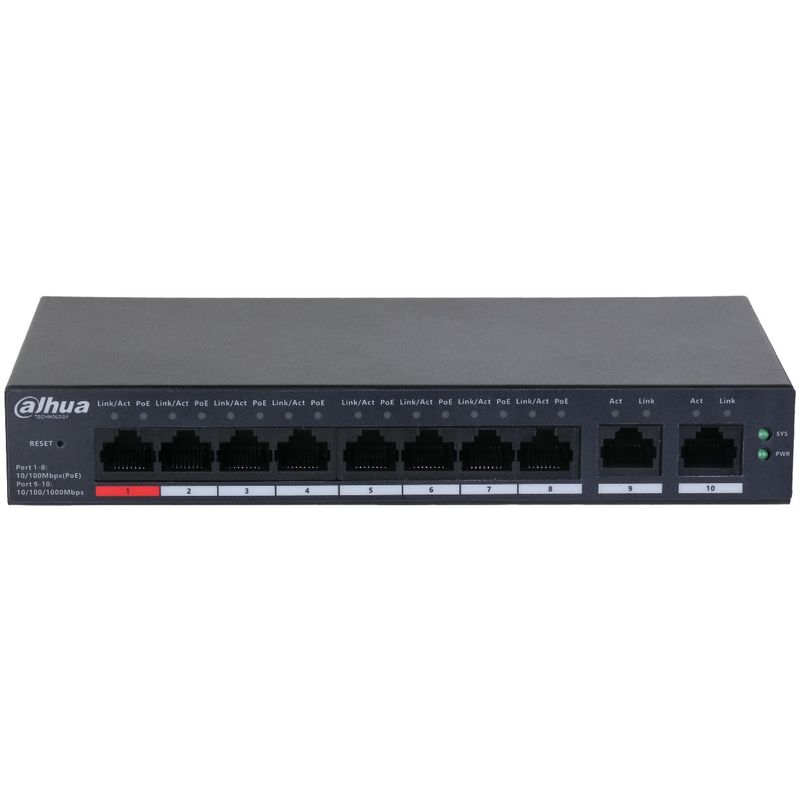

Switch-ul Dahua CS4010-8ET-110 este dotat cu 8 porturi Ethernet si 2 porturi SFP, astfel ofera o viteza mai mare de conectivitate cu pana la 10/100/1000 Mbps pentru porturile Ethernet si doua porturi uplink de 10/100/1000 Mbps, acest switch este proiectat pentru a maximiza performanta retelei si eficienta energetică.
Portul 1 ofera pana la 90W pentru dispozitivele cu cerinte energetice ridicate, in timp ce porturile 2-8 suporta pana la 30W fiecare.
Activarea functiei Extended creste distanta maxima de transmise PoE pana la 250m si micsorand viteza de transmisie la 10 Mbps.
Daca activati functia PoE Watchdog, switch-ul trece automat in modul de supraveghere si va activa o serie de caracteristici specifice, precum diagnosticarea fiecarui port in parte, si restartarea unui port in caz de avarie, managemntul inteligent al puterii poe, posibilitatea de alocare a unei puteri mai mare la porturile principale, s.a.
Dispozitivele pot fi gestionate prin aplicatia DoLynk Care, aceasta afiseaza starea dispozitivelor, declanseaza alarme pentru erori in timp real si trimite notificari.
Totodata, este proiectat pentru a satisface orice nevoi complexe ale retelelor moderne. Acesta se instaleaza fie pe un birou, fie pe un perete, avand dimensiunile reduse si o greutate reduse, acesta va fi usor de montat.
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- EAN 6923172571168
- Ecotax 2
- Brand Dahua
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 8 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Description of Function | Slots |
| Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink) | |
| Reset Button | 1 |
| Power Supply | External power supply: 54 VDC, 2.22 A |
| Operating Temperature | -10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%-95% (RH), non-condensing |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Humidity | 5%-95% (RH), non-condensing |
| Power Consumption | Idling: ≤3 W; Full load: 110 W |
| Layer | Layer 2 |
| Management Type | Yes |
| Smart Managed Switch | Yes |
| MTBF | 150 years |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 9216 Byte |
| MAC Table Size | 8K |
| VLAN Number | 32 |
| Communication Standard | IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt |
| PoE Power Port | 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W |
| PoE Power Consumption | Management |
| PoE Pin Assignment | 1,2,4,5(V+),3,6,7,8(V-) |
| Long Distance PoE | Transmission |
| VLAN Function | Port-based VLAN |
| IEEE 802.3x Flow Control | Yes |
| DHCP Function | DHCP Client |
| Equipment Management | Web management; App management |
| Lighting Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1.25 kg (2.76 lb) |
| Product Dimensions | 190 mm × 106 mm × 30 mm |
