Descriere produs

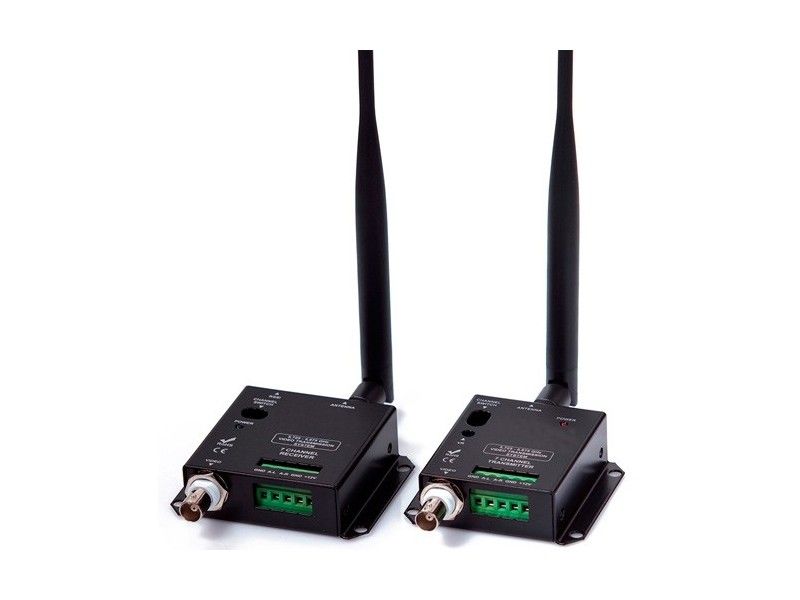

Set transmisie wireless audio/video interior 1000m
Operation frequency | from 5725 MHz to 5875 MHz |
Output power | |
Sensitivity | - 87 dBm |
Operation range | up to 1000m |
Impedance | 50 Ω |
Modulation | FM |
Aerial connectors | SMA Female |
Operating channels | 8 or 16 (non UE countries) |
Video format | PAL/NTSC |
Video connectors | BNC 75 Ω |
Audio stereo | 600 Ω |
Audio band | 50 Hz - 15 kHz |
Power supply | 9-14V/500 mA DC |
Operation temperature | 0°C ÷ 50°C |
Dimensions | Tx: 67 x 73 x 26 [mm]; Rx 66 x 83 x 25 [mm] |
Application | indoor |
