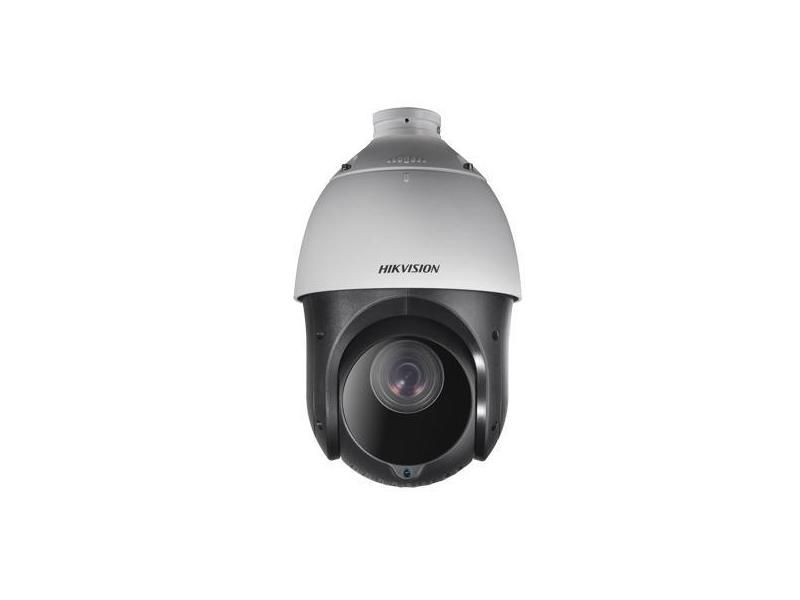

Camera speed dome IP, FULL HD, zoom 20X, PTZ, DWDR, IR 100 metri. Camera de supraveghere pentru aplicatii profesionale cu zoom optic puternic, PAN 360 grade infinit si Tilt.
Descarca manualul de utilizare si instalare in limba romana
| Camera | |
|---|---|
| Senzor de imagine: | 1/2.8" Progressive Scan CMOS |
| Rezolutie: | 1920(H)x1080(V) |
| Sistem: | PAL/NTSC |
| Iluminare minima: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux cu IR |
| Balans de alb: | Auto/Manual/ATW/Interior/Exterior/Incandescent/Fluorescent |
| AGC: | Auto/Manual |
| BLC: | Pornit/Oprit |
| HLC: | Support |
| WDR: | Support |
| Obturator: | 1-1/10,000s |
| Day& Night: | ICR |
| Zoom digital | 16X |
| Masca: | 8 masti de privatiune programabile. |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lentila | |
| Lungime focala: | 4.7-94.0mm, 20x |
| Viteza zoom | Aprox.3secunde de la max la min.(Optical Wide~Tele) |
| Unghi: | 58.3-3.2 grade (Wide~Tele) |
| Distanta minima de focus: | 10~1,000mm(Wide~Tele) |
| Gama apertura | F1.6~F3.5 |
| Pan & Tilt | |
| Raza Pan: | 360° la nesfarsit. |
| Viteza Pan : | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Raza Tilt: | -15°-90° (Auto Flip ) |
| Viteza Tilt: | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| Zoom proportional: | Viteza de rotatie adjustata la zoom |
| Preseturi: | 300 |
| Patrule: | 8 patrols, up to 32 presets per patrol |
| Actiuni: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display: | ON/OFF |
| Infrarosu | |
| Distanta IR: | 100m |
| Focusare IR : | Adjustabil din zoom |
| Retea | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Rata de cadre: | 50Hz:25fps(1920×1080), 25fps (1280×720), 60Hz:30fps(1920×1080), 30fps (1280×720) |
| Stream principal: | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) |
| Stream secundar: | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) |
| Al 3 -lea stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| Compresie: | H.264 / MJPEG |
| Codare ROI: | Support 4 areas with adjustable levels |
| Protocol comunicare: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Nr. utilizatori simultani: | Pana la 20 utilizatori |
| Dual Stream: | Suporta |
| Mini SD Card: | Suporta. Pana la 128GB Micro SD/SDHC/SDXC card. g |
| Niveluri utilizatori: | Pana la 32 users,3 Nivele: Administrator, Operator si utilizator |
| General | |
| Limba: | Engleza |
| Alimentare: | 12 VDC &POE (802.3at,class4) |
| Consum: | Max.20W |
| Temperatura functionare/Umiditate: | -30°C ~ 65°C (-22°F ~ 149°F) |
| Grad protectie | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Montaj: | Include brat montaj 1602ZJ |
| Dimensiuni: | Φ164.5(mm)×295(mm) |
| Greutate (approx.): | 2kg |
