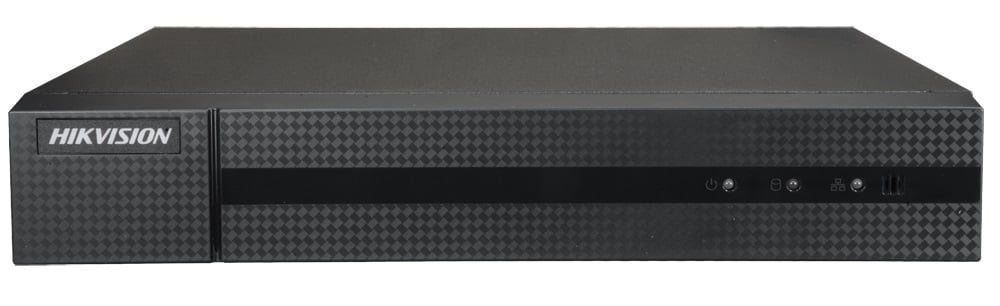

XVR 16 canale 1080P Lite compresie H.265Pro+ Hikvision HWD-5116MH-G3S. Este un inregistrator digital de buget de la Hikvision pentru 16 canale analog si doua canale IP (max 5MP).
Codare foarte buna H265PRO+ ajuta la stocarea pe termen lung al imaginilor. Este dotat cu o intergata SATA III, si o inytrare analog audio. Poti folosii mai multe canale audio pe tehnologia audio over coaxial HDTVI
| Brand | Hikvision |
| Range | HiWatch Series |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 16 channels BNC and 2 IP channels (up to 5Mpx) |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Bidirectional audio | 1 input / 1 RCA output |
| Audio over coaxial | 16 CH on coaxial |
| Video / audio compression | H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total bandwidth | 32 Kbps at 4 Mbps |
| Recording resolution | 1080p Lite / 720p / WD1 / 4CIF /VGA / CIF |
| Main Stream coding | For 1080p: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps [%VAR%] (N) For 720p: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) Standard Definition: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Extra Stream coding | For 1080p and 720p access: CIF/QVGA@15fps For standard definition: CIF/QVGA@25fps (P)/30fps (N) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | No |
| Recording method | Manual, programmed, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory | 1 HDD SATA 3.5" of up to 10TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 10/100 (Ethernet) |
| Remote access | Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200 |
| Power | DC 12 V / 1 A |
| Dimensions / Weight | 45 (H) x 260 (W) x 222 (D) mm / 0.8 Kg |
