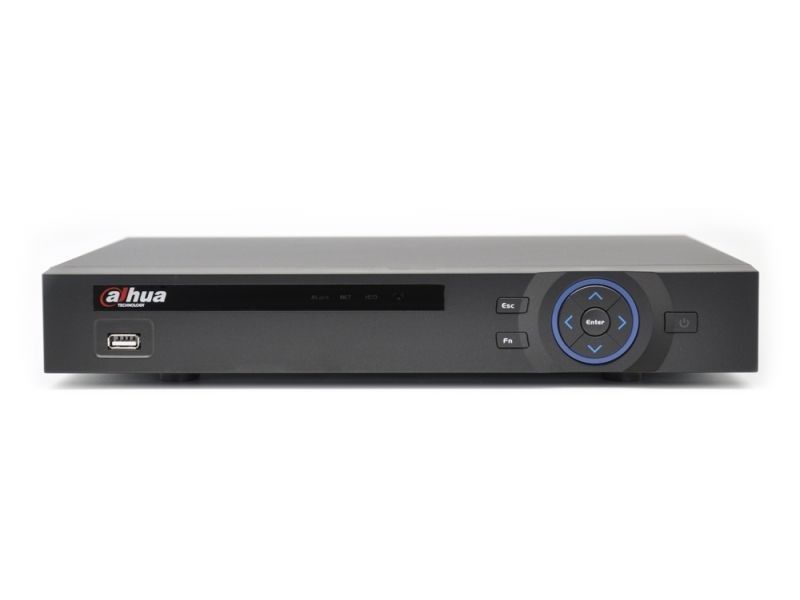

Dvr 8 canale FULL 960H Dahua DVR5108-H Hybrid
- Descriere scurta
DVR cu 8 canale video FULL 960H DVR5108-H fabricat de Dahua . Dispune de rezolutie buna la inregistrari, compresie H264, iesire HDMI si VGA si multe alte functii pentru a inregistra filmarile camerelor de supraveghere. Este un dvr Hybrid,accepta si camere analog si camere IPmegapixel simultan.
- Cod produs DVR5108-H
- Brand Dahua
Descriere
Descriere produs
Dvr 8 canale Hybrid FULL 960H Dahua DVR5108-H : 8 intrari video, 1 intrare audio, 200 fps/960H(960x576), 200 fps (real-time) la vizualizare, inregistrare cu 200 fps/D1(704x576), 200fps/HD1 (352x576) si 200fps/CIF(352x288), rezolutie vizualizare D1 (704x576), inregistrare la detectie miscare, dupa orar, continuu sau intrari alarma, LAN, webserver, CMS (soft dispecerat) gratuit pentru 300 canale, 2 porturi USB, RS485 pentru comanda speed domuri, suporta 1 hard disk SATA II , 2 iesiri videocomplex, 1 iesire VGA, 1 iesire HDMI, dual stream, permite vizualizarea direct de pe telefonul mobil 3G Smartphone (Win mobile 5 / 6.0, Symbian, iPhone, Android, BlackBerry), playback simultan pentru 8 canale, operare pentaplex, telecomanda, controlul meniurilor cu mouse USB, controlul speed domurilor cu mouse direct pe imagine (3D intelligent location - click on image), dimensiune mini 1U 325mm x 245mm x 45mm.
Dvr 8 canale Hybrid FULL 960H Dahua DVR5108-H accepta simlutan si camere analog si camere IP megapixel.
Specificatii tehnice
Specificatii tehnice
- Garantie -
- Rezolutie 1200 TVL (960H)
- Brand Dahua
| Caracteristici Dvr 8 canale Hybrid FULL 960H Dahua DVR5108-H | |
| System | |
| Processor | Procesor incorporat |
| Sistem operare | LINUX Embedded |
| Video | |
| Intrari | 8 canale, BNC |
| Standard video | PAL |
| Audio | |
| Intrari | 1 canal, RCA |
| Iesiri | 1 canal, RCA |
| Audio Bidirectional | Da |
| Display | |
| Conectori | 1 HDMI, 1 VGA, 1 TV(BNC) |
| Rezolutie display | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Impartire ecran | 1/4/2009 |
| Zone private | 4 zone rectangulare pe fiecare canal |
| OSD | Titlu camera, Timp, Lipsa semnal, Camera blocata, Detectie miscare, Inregistrare |
| Inregistrare | |
| Compresie video/audio | H.264 / G.711 |
| Rezolutie | WD1/960H(960x576)/ D1/ 4CIF(704x576)/ 2CIF(704x288)/ CIF(352x288) / QCIF(176x144) |
| Numar cadre | Main Stream: max. 25fps@WD1/960H/D1/canal |
| Extra Stream: max. 25fps@CIF/QCIF/canal | |
| Bit Rate | 48~4096Kb/s |
| Mod inregistrare | Manual, Orar(Continuu, Detectie miscare), Stop |
| Interval inregistrare | 1~120 min (default: 60 min), Pre-inregistrare: 1~30 sec, Post-inregistrare: 10~300 sec |
| Detectie video | |
| Activare eveniment | Inregistrare, Tur, Video Push, Email, FTP, Buzzer & Mesaj OSD |
| Detectie video | Detectie miscare 396(22×18) zone, Lipsa semnal & Camera obturata |
| Redare & Backup | |
| Redare simultana | Toate canalele |
| Parametri cautare | Interval timp, Eveniment, Cautare exacta (precizie1s) |
| Functii redare | Redare, Pauza, Stop, Inapoi, Redare rapida, Redare lenta, Fisier urmator, Fisier anterior, Full screen, Repetare, Amestecare, Selectie backup, Zoom digital |
| Mod backup | Dispozitiv USB / Retea |
| Retea | |
| Adaptor retea | 1 port RJ-45 (10/100M) |
| Protocol retea | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
| Numar utilizatori | 20 utilizatori |
| Suport smartphone | iPhone, iPad, Android, Windows Phone |
| Stocare | |
| Hard Disk | 1 port SATA max. 4TB |
| Interfete auxiliare | |
| USB | 2 porturi USB2.0 |
| HDMI | 1 port HDMI |
| RS485 | Control PTZ, Click on Image |
| Generalitati | |
| Alimentare | DC12V/2A |
| Consum | 10W(fara Hard Disk) |
| Mediu functionare | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimensiuni(W×D×H) | Mini 1U, 325mm×245mm×45mm |
| Greutate | 1.5KG |
