Descriere produs

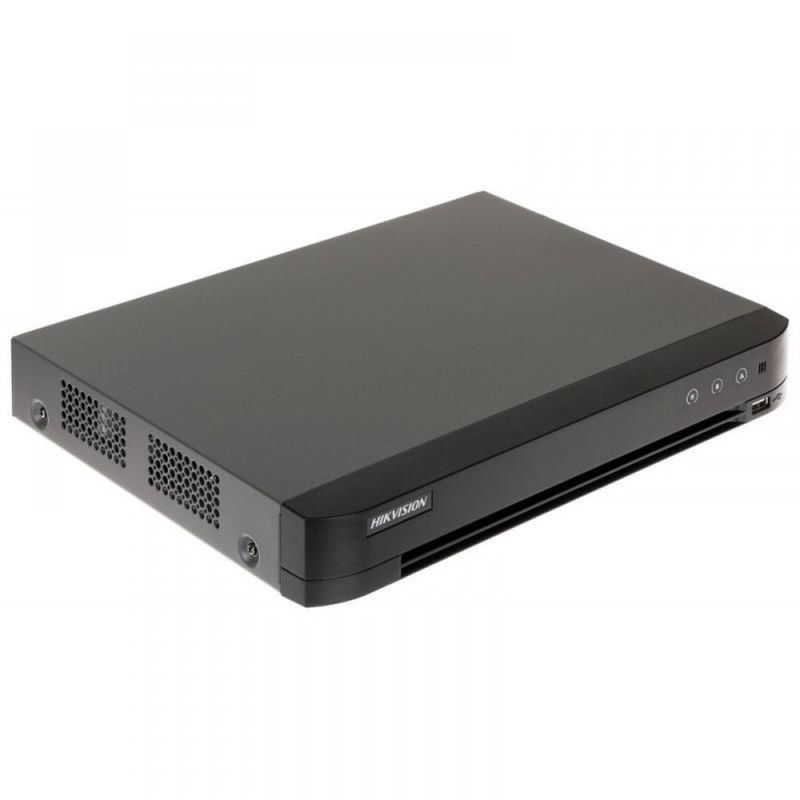

Dvr 8 canale 8MP (4K) Hikvision DS-7208HTHI-K2 HDTVI / HDCVI / AHD / CVBS. Accepta si doua camere IP (8MP). 4 intrari de canale audio. Codare H265+

Intrare vide si transmisie

Intrare video auto detect HDTVI/HDCVI/AHD/CVBS
Pina la 2-ch 8 MP IP
8 MP HDTVI video Live View
Suporta si camere analog CVBS
Distanta mare de trasnmisie : max. 800m for 1080p and 1200m for 720p HDTVI signal

Compresie

H.265+/H.265/H.264+/H.264

Poti conecta camere IP H.265+/H.265/H.264+/H.264

Inregistrare FULL la rezolutie de 8 MP

Iesire Video

Simultan HDMI/VGA
HDMI output pina la 4K (3840 × 2160)
Iesire CVBS separata

Stocare si inregistrari

2 x SATA interface (max 8 TB)
Vizualizare 4 ch simultan a inregistrarilor
Cautare smart

Descriere

Descriere produs

Dvr 8 canale 8MP (4K) Hikvision DS-7208HTHI-K2 HDTVI / HDCVI / AHD / CVBS. Accepta si doua camere IP (8MP). 4 intrari de canale audio. Codare H265+

Intrare vide si transmisie

Compresie

H.265+/H.265/H.264+/H.264

Poti conecta camere IP H.265+/H.265/H.264+/H.264

Inregistrare FULL la rezolutie de 8 MP

Iesire Video

Simultan HDMI/VGA
HDMI output pina la 4K (3840 × 2160)
Iesire CVBS separata

Stocare si inregistrari

2 x SATA interface (max 8 TB)
Vizualizare 4 ch simultan a inregistrarilor
Cautare smart

Specificatii tehnice

Garantie 36 luni
Rezolutie 8 Megapixeli(4K)
Brand Hikvision

Video/Audio Input
Audio Input:		4-ch, RCA (2.0 Vp-p, 1 KΩ)
Video Compression:		H.265+/H.265/H.264+/H.264
Analog Video Input:		8-ch,BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Analog and HD-TVI video input:		8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
IP Video Input:		4-ch,Up to 8 MP resolution,Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio Compression:		G.711u

Video/Audio Output
HDMI/VGA Output:		VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Frame Rate:		Main stream: 8 MP@10fps, 5 MP@20fps, 3 MP@18fps 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps to 16 Mbps
Stream Type:		Video, Video & Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Audio Output:		1-ch, RCA (Linear, 1 KΩ)
Audio Bit Rate:		64 Kbps
Dual Stream:		Support
Synchronous Playback:		8-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard Disk Driver
Interface Type:		2 SATA interfaces
Capacity:		Up to 8 TB capacity for each disk

External Interface
Network Interface:		1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB Interface:		Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
Serial Interface:		RS-485 (half-duplex)
Alarm Input:		8
Alarm Output:		4

General
Power Supply:		12 VDC
Consumption:		≤ 20 W
Working Temperature:		-10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working Humidity:		10% to 90%
Dimensions:		380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight:		≤ 2 kg (4.4 lb)

Descarca de aici documentatia necesara:
