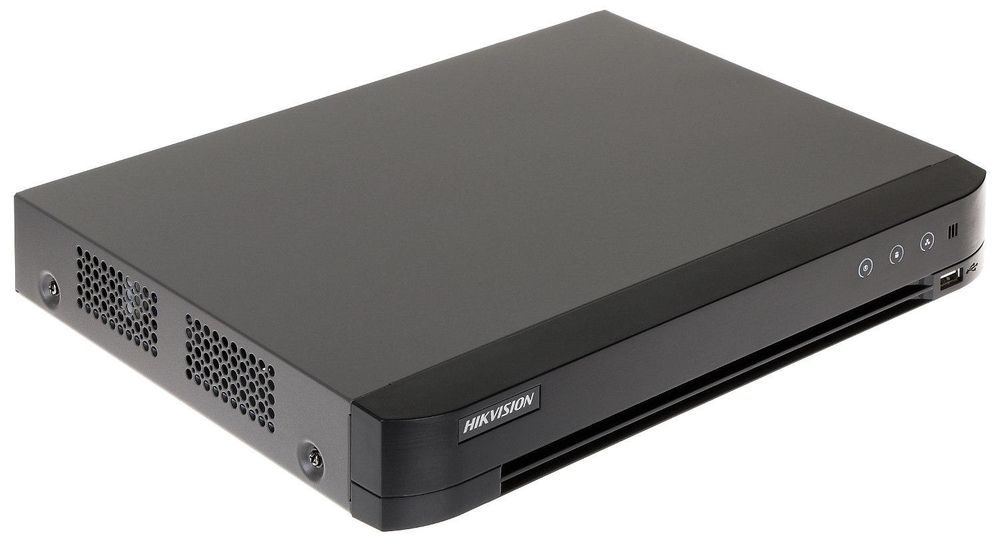

DVR 4 canale 5 MP 2xHDD Hikvision DS-7204HUHI-K2
Descriere
Descriere produs
DVR 4 canale 5 MP 2xHDD Hikvision
DVR-ul Hikvision are 4 canale cu rezolutie maxima de pana la 5 MP, daca este utilziat cu camere de supraveghere pe tehnologie Turbo HD. In cazul in care este utilizat cu camere de supraveghere HDCVI sau AHD, rezolutie maxima este Full HD. Are 4 intrari audio. Compresia video este realizata cu ajutorul codecurilor H.265+/H.265/H.264+/H.264, iar compresia audio cu codecul G.711u.
Rezolutie impresionanta
Noua tehnologie Hikvision TurboHD permite inregistrarea de imagini de supraveghee de calitate inalta. Rezolutia maxima suportata este de 5 megapixeli pe camere TUrbo HD sau FULL HD pe camere HDCVI/AHD.
Salveaza spatiu de stocare- H265+ - Cu pana la 80% economie de spatiu
Acest nou DVR de la Hikvision ofera stocare eficienta folosind noua compresie H.265+. Acum puteti salva foarte eficient inregistrarile. Videoclipurile vor consuma in unele cazuri cu pana la 80% mai putin spatiu de stocare.
Suporta HDD de capacitate mare
Acest DVR suporta doua hard-disk de capactiate mare, pana la 8 Terabiti fiecare, pentru stocare indelungata.
Intrari audio pentru fiecare canal
Include 4 intrari audio pentru a putea monta microfoane la fiecare camera.
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- Brand Hikvision
| Intrare Video/Audio | |
|---|---|
| Intrare audio | 4 |
| Compresie video | H.265+/H.265/H.264+/H.264 |
| Intrare video | 4 x BNC (1.0Vp-p, 75 Ω) |
| Camere compatibile | Turbo HD: 5MP, 4MP, 3MP, 1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, AHD: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz HDCVI: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz CVBS |
| Interfata intrare video | BNC (1.0 Vp-p, 75Ω) |
| Comrpesie audio | G.711u |
| Interfata intrare audio | RCA (2.0 Vp-p, 1 kΩ) |
| Audio bi-directional | 1 x RCA (2.0 Vp-p, 1 KΩ) |
| Iesire Video/Audio | |
| Iesire CVBS | 1 x BNC(1.0Vp-p,75Ω), rezolutie:PAL:704x576,NTSC:704x480 |
| Iesire HDMI/VGA | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Rezolutie inregistrare | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate: | 32 Kbps-10 Mbps |
| Tip stream | Video/Video&Audio |
| Audio bi-directional | 1 x RCA (2.0 Vp-p, 1 kΩ) (utilizand intrarea audio) |
| Iesire audio | 1 x RCA (Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Da |
| Rezolutie redare | 5MP/4MP/3MP/1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF |
| Redare simultana | 4 canale |
| Management retea | |
| Conexiuni de la distanta | 128 |
| Protocol retea | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk | |
| Interfata | 2 SATA |
| Capacitate | Pana la 8 TB fiecare |
| Interfata externa | |
| Interfata retea | 1; 10M / 100M self-adaptive Ethernet |
| USB | 2 x USB 2.0 |
| Interfata serial | 1 standard RS-485, half-duplex |
| General | |
| Alimentare | 12V DC |
| Consum | ≤ 10W(fara hard diskuri) |
| Temperatura operare | -10 ºC to +55 ºC |
| Umiditate operare | 10% to 90% |
| Dimensiuni | 380 × 320 × 48 mm |
| Greutate | ≤ 1.16 kg |
