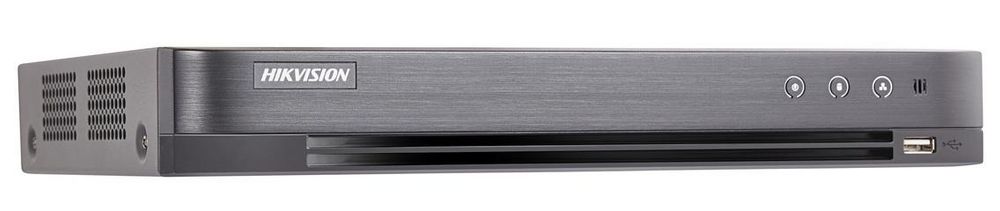

DVR 16 canale FULL HD, pentabrid, 2 x HDD, Hikvision DS-7216HQHI-K2
Descriere
Descriere produs
DVR 16 canale PENTABRID
Hikvision DS-7216HQHI-K2 este un DVR pentabrid din generatia Turbo HD. Suporta pana la 16 camere video FULL HD pe tehnologiile AHD/CVI, Turbo HD, CVBS, dar si camerele IP (doar 2 canale pentru camere IP cu rezolutie maxima 4 MP). Permite redarea in sincron pe toate cele 16 intrari video.
Pentru a stoca imaginile cat mai eficient, foloseste noua tehnologie de compresie H265+. O alta caracteristica avantajoasa este posibilitatea adaugari a 2 HDD de pana la 6TB fiecare (nu sunt incluse). Are o intrare audio bi-directionala, si doua sloturi USB (1x2.0 in partea din fata si 1x3.0 in partea din spate).
Poate sa comande camere mobile SPEED DOME prin cablu coaxial (protocol COAXITRON sau OMNICAST.
ATENTIE - SUPORTA INREGISTRARE LA 3 MEGAPIXELI DOAR PE PRIMELE 4 CANALE (1/2/3/4)
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- Brand Hikvision
Descarca manualul de instalare si utilizare in limba romana
Descarca certificatul de conformitate aici
| Intrare Video/Audio | |
|---|---|
| Intrare Audio: | 1-ch |
| Compresie Video: | H.265+/H.265/H.264+/H.264 |
| Intrare video analog si HD-TVI: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Camere compatibile: | Suporta HDTVI : 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Suporta AHD : 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Suporta CVI : 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Suporta CVBS |
| Camere IP: | 2 ch, pana la 4 MP, suporta compresia H265+,H265,H264+,H265. |
| Interfata intrare video: | BNC (1.0 Vp-p, 75Ω) |
| Compresie Audio: | G.711u |
| Interfata intrare audio: | RCA (2.0 Vp-p, 1 kΩ) |
| Intrare audio bi-directionala: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Iesire Video/Audio | |
| Iesire CVBS : | 1-ch,BNC(1.0Vp-p,75Ω),rezolutie:PAL:704x576 |
| Iesire HDMI/VGA : | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Rezolutie inregistrare: | Cand modul 1080p Lite nu este activ: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; Cand modul 1080p Lite este activat: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate: | Main stream: Cand modul 1080p Lite nu este activ: : Pentru acces stream 3 MP: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps Pentru acces stream1080p : 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Pentru acces stream 720p : 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Cand modul 1080p Lite este activat: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit Rate: | 32 Kbps-6 Mbps |
| Tip stream: | Video/Video&Audio |
| Audio bi-directional: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Iesire Audio: | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | 64kbps |
| Dual Stream: | Da |
| Rezolutie redare: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Vizualizare simultana: | 16-ch |
| Management retea | |
| Conexiuni de la distanta: | 128 |
| Protocoale retea: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard Disk | |
| Tip interfata: | 2 SATA pentru 2 HDD |
| Capacitatea: | pana la 6 TB fiecare |
| Interfata externa | |
| Interfata retea: | 1; 10M / 100M / 1000M self-adaptive Ethernet |
| USB : | 1 USB 2.0 pe partea din fata, 1 USB 3.0 pe partea din spate. |
| General | |
| Alimentare: | 12V |
| Consum: | consum |
| Temperatura optima de functionare: | -10 ºC to +55 ºC (14 ºF to 131 ºF) |
| Umiditatea: | 10% to 90% |
| Dimensiune: | 380mm x 320mm x 48mm |
| Greutate: | aprox 2kg |
