Acest model de DVR nu suporta audio de la camere prin coaxial, insa are o intrare audio cu conector RCA.

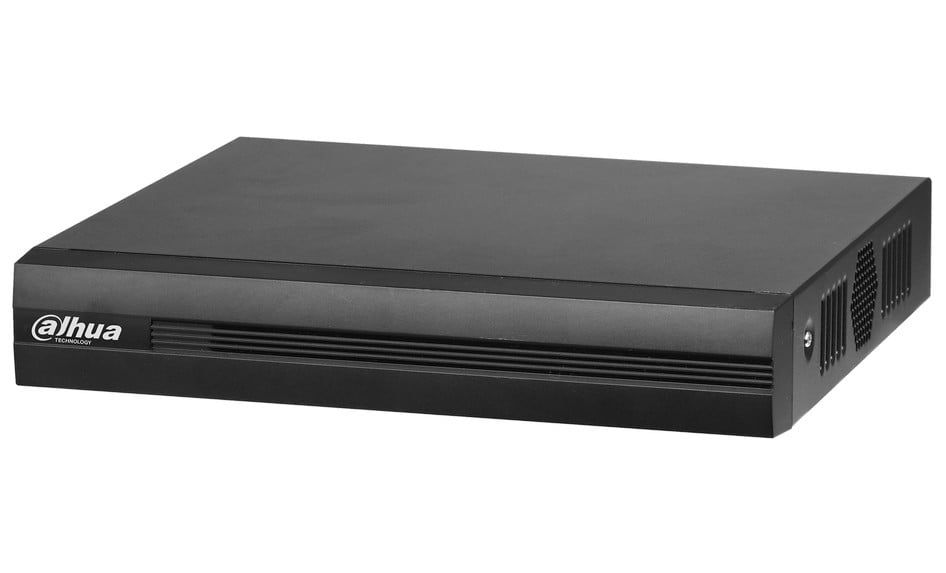

Dahua XVR1B16-I face parte din seria produselor WizSense, fiind una din cele mai bune optiuni daca se doreste supravegherea video analogica la rezolutia Full HD. Cu ajutorul tehnologiei WizSense, o tinta / un intrus poate fi rapid detectata in urma unui eveniment, datorita utilizarii descurajarii active (Active Deterrance).
| Performanta: | 8 canale |
| Cautare inteligenta (AI): | Cautare dupa clasificare (om/vehicul) |
| Tehnologii suportate: | HDCVI/AHD/TVI/CVBS |
| Intrari video analogice: | 16 canale, BNC |
| Intrari video IP: | 16+2 canale fiecare canal cu 6MP |
| Iesiri video: | 1x HDMI, 1x VGA |
| Rezolutie redare: | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Intrari/Iesiri Audio: | 1/1, RCA |
| Tipuri de camere suportate: | Camere HDCVI: 1080p@ 25/30 fps, 720p@25/30/50/60 fps Camere AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps Camere TVI: 1080p@25/30 fps, 720p@25/30 fps |
| Inregistrare | CVBS: PAL/NTSC |
| Intrare camera IP | 16+2 canale, fiecare canal pana la 6MP |
| Rezolutie inregistrare: | 1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF |
| Cadre/Secunda: | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps) Sub stream: CIF/QCIF (1 fps–7 fps) |
| Mod inregistrare: | Continuu, Manual, Programat, Detectie de miscare, Pierdere semnal Video, La alarma, Stop |
| Intervalul de inregistrare: | 1-60 min, Preinregistrare 1-30 sec, Post-inregistrare 10-300 sec |
| Compresie video: | AI Coding/H.265+/H.265/H.264+/H.264 |
| Bit Rate: | 32Kbps ~ 4096 Kbps / canal |
| Compresie audio: | G.711A; G.711U; PCM |
| Latime banda intrare: | 64 Mbps |
| Interfata: | 1x Port RJ-45 (100 M) |
| Protocol retea: | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Compatibilitate Smart Phone: | iPhone, iPad, Android |
| Intercompatiblitate: | ONVIF 16.12, CGI Conformant |
| HDD: | 1x port SATA (capacitate pana la 6 TB) |
| eSata: | Lipsa |
| Declansare eveniment: | Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips |
| Detectie video: | Detectia miscarii Zone MD: 396 (22 x 18), video loss, tampering si diagnoza |
| USB: | 2x port USB 2.0 |
| RS232: | Lipsa |
| RS485: | Lipsa |
| Functii redare: | Redare, Pauza, Stop, Inapoi, Redare rapida, Redare lenta, Fisier urmator, Fisier anterior, Full screen, Repetare, Amestecare, Selectie backup, Zoom digital |
| Mod Backup: | USB, Retea |
| Suport producatori terti: | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek etc |
| Temperatura de functionare: | de la -10°C - +45°C |
| Alimentare: | DC 12V / 2 A |
| Consum: | < 10 W (fara HDD) |
| Dimensiune: | 260.0 mm × 231.4 mm × 47.6 mm |
| Greutate: | 1.42 Kg |
