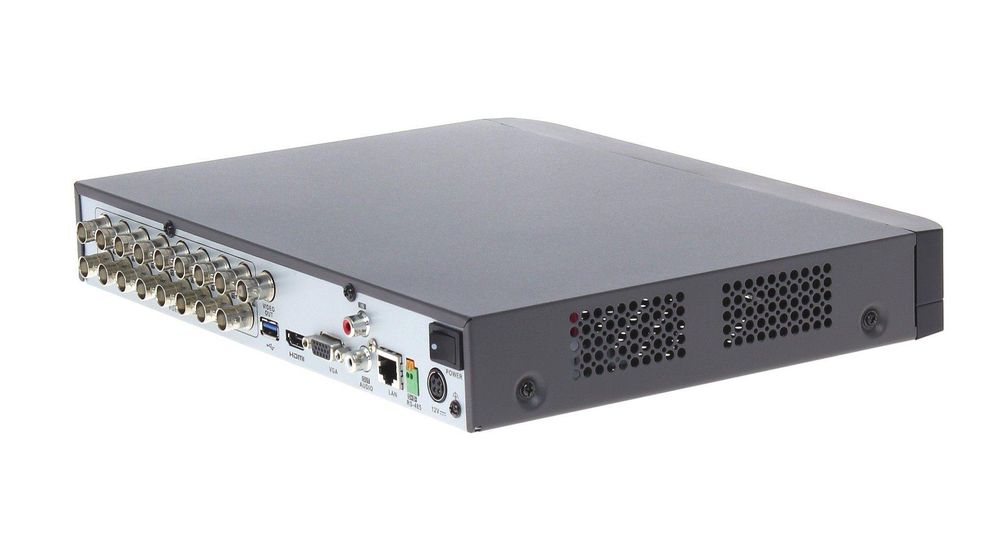

DVR 16 canale, 2 Megapixeli, H265+ Hikvision DS-7216HQHI-K1
Descriere
Descriere produs
DVR cu 16 canale, inregistrare la 2 Megapixeli Non Realtime, cu compresie H265.
Comuta automat intre semnalele camerelor de supraveghere HDTVI /HDCVI/AHD/CVBS. Suporta 2 camere IP cu rezolutie maxima de 4 Megapixeli.
Iesire HDMI 4K pentru cele mai noi monitoare si televizoare.
Playback simulant pe 16 canale.
ATENTIE - SUPORTA INREGISTRARE LA 3 MEGAPIXELI HDTVI DOAR PE PRIMELE 4 CANALE (1/2/3/4)
Caracteristici principale:
► tehnologii suportate : HDTVI /HDCVI/AHD/CVBS
► 1 iesire HDMI si 1 VGA
► compresie H.265+/H.265/H.264+/H.264
► 1 x port Sata, pana la 6 TB
► 2 porturi USB
► 1 x port RS485 pentru control PTZ
► 1 x canal RCA, comunicare bidirectionala
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- Rezolutie 2MP 1080p Full HD
- Brand Hikvision
Descarca manualul de instalare si utilizare in limba romana
Specificatii
| Audio/Video | |
|---|---|
| Tehnologii suportate: | HDTVI/HDCVI/AHD/CVBS/IP |
| Intrari video analogice: | 16x canale |
| Intrari video IP: | 2x canale, rezolutie pana la 4 Mp |
| Iesiri video: | 1x HDMI, 1x VGA |
| Rezolutie redare: | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Intrari/Iesiri Audio: | 1/1 RCA |
| Comunicare bidirectionala: | 1x canal RCA (Utilizand primul canal de intrare audio) |
| Inregistrare | |
| Rezolutie inregistrare: | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Cadre/Secunda: | Main stream: Cand modul 1080p Lite nu este activ: 3 MP stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps 1080p stream: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) 720p stream: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Cand modul 1080p Lite este activ: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Compresie video: | H.265+/H.265/H.264+/H.264 |
| Compresie audio: | G.711u |
| Retea | |
| Interfata: | 1x Port RJ-45 (10/100/1000M) |
| Protocol retea: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Utilizatori simultani: | 128 |
| Stocare | |
| HDD: | 1x port SATA, pana la 6TB |
| Interfete auxiliare | |
| USB: | 2x porturi USB (1 USB 2.0 , 1 USB 3.0) |
| RS485: | 1x Port, pentru Control PTZ |
| Functii Speciale | |
| Mod Backup: | USB, Retea |
| Caracteristici generale | |
| Temperatura de functionare: | de la - 10 pana la +55 grade Celsius |
| Alimentare: | DC12V |
| Consum: | 25 W (fara HDD) |
| Dimensiune: | 315 x 242 x 45 mm |
| Greutate: | 1.78 kg |
