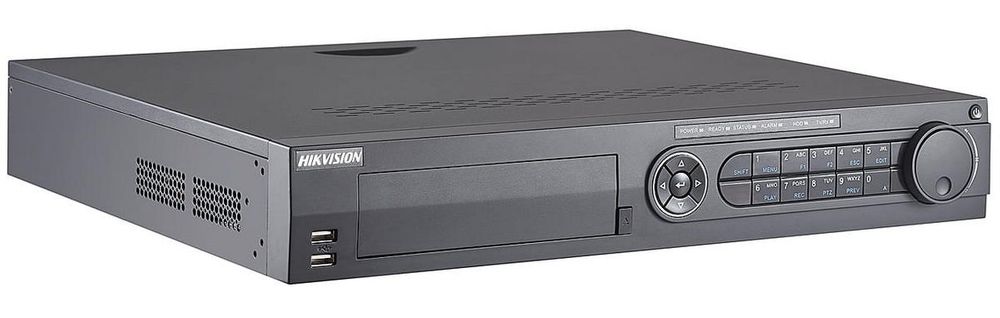

DVR Hikvision DS-7316HTHI-K4 este dotat cu 16 canale analogice, si accepta Acesta suporta camere IP cu o rezolutie de pana la 8 Megapixeli, dar si camere pe tehnologiile Turbo HD si analogice.
Totodata, acest dispozitiv permie conectarea monitoarelor atat pe portul HDMI, cat si pe cel VGA, astfel poate sa redea imaginile captate pe 2 monitoare. Mai mult, acest DVR poate conecta pana la 4 hard disk-uri cu o capacitate de stocare de 10TB fiecare.
| Inregistrare | |
| Compresie video | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Rezolutie de codificare | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Cadre | Principal: 8 MP@12 fps/5 MP@20 fps; 3 MP@18fps; 4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-flux: WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Rata transfer video | 32 Kbps pana 16 Mbps |
| Stream dual | suporta |
| Tipul de inregistrare | Video, Video & Audio |
| Compresie audio | G.711u |
| Rata transfer audio | 64 Kbps |
| Video si Audio | |
| IP video intrare | 16 canale (pana la 32 canale) |
| Pana la 8 MP rezolutie | |
| Suporta H.265+/H.265/H.264+/H.264 IP camere | |
| Video analog intrare | 16 canale |
| BNC interfata(1.0 Vp-p, 75 Ω), suporta conexiune coaxitron | |
| HDTVI intrare | 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| AHD intrare | 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30 |
| HDCVI intrare | 4 MP, 720p25, 720p30, 1080p25, 1080p30 |
| CVBS intrare | PAL/NTSC |
| CVBS iesire | 1-canal, BNC (1.0 Vp-p, 75 Ω) |
| HDMI1/VGA iesire | 1-canal, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| HDMI2 iesire | 1-canal, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Audio intrare | 4-canale, RCA (2.0 Vp-p, 1 KΩ) |
| Audio iesire | 2-canale, RCA (Linear, 1 KΩ) |
| Audio bidirectional | 1-canal, RCA (2.0 Vp-p, 1 KΩ) (independent) |
| Redare sincronica | 16-canale |
| Retea | |
| Conexiuni | 128 |
| Protocoale retea | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP |
| Interfata retea | 2, RJ45 10M/100M/1000M adaptabila Ethernet interfata |
| Interfata auxiliara | |
| SATA | 4, SATA interfata |
| eSATA | 1, eSATA interfata |
| Capacitate | Pana la 10 TB capacitate pentru fiecare disk |
| Interfata serie | RS-232, RS-485 (full-duplex), Keyboard |
| Alarma intrare/iesire | 16/4 |
| USB interfata | Panou din fata: 2 × USB 2.0 Panou din spate: 1 × USB 3.0 |
| General | |
| Putere | 100 pana la 240 VAC, 50 pana la 60 Hz, 1.3 A |
| Consum (fara HDD) | ≤ 45 W |
| Temperatura de functionare | -10 °C pana la 55 °C (14 °F to 131 °F) |
| Umiditate | 10% to 90% |
| Dimensiuni | 445 × 390 × 70 mm |
