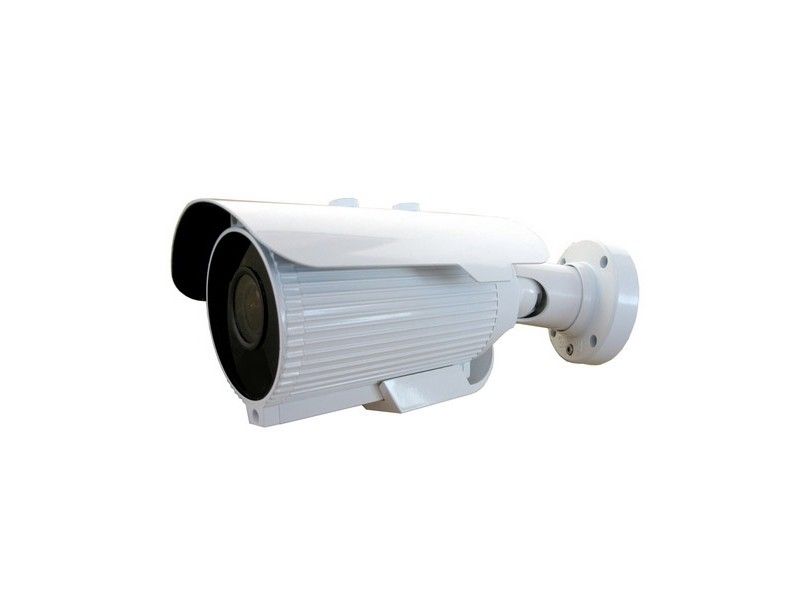

Camera de supraveghere de 1000 TVL - Dahua. Bazata pe un senzor Sony Exmor Cmos lentila varifocala si iluminare cu infrarosu.
Camera exterior 1000TVL 2,8-12mm DAHUA KM-78EX. cu filtru IR autoretractabil, iluminator infrarosu 24 LED-uri , max 40 m, 0 Lux (IR ON), Remote OSD(comanda OSD de la distanta direct prin cablu video sau balun), 3D noise reduction, Motion detection (4 zone), Privacy mask (8 zone), digital zoom 5x, DC 12V, <100mA,
|
Camera exterior 1000TVL 2,8-12mm DAHUA KM-78EX |
|
|
Senzor CCD |
1/3" SONY Exmor |
|
Pixeli efectivi ( H*V ) |
1305x1049 |
|
Rezolutie camera |
1000 Linii TV |
|
OSD |
Remote OSD |
|
Raport Semnal/Zgomot |
> 48 dB |
|
Noise Reduction |
3D NR |
|
Sensibilitate |
0 Lux ( IR ON ) |
|
Sincronizare |
Interna,Sincronizare negativa. |
|
AES |
PAL:1/50s~1/100,000s |
|
Gamma |
0.45 |
|
Iluminator IR |
24 led-uri |
|
Prag IR |
|
|
Activare IR |
CDS Auto Control |
|
Iesire video |
1Vpp,75Ω |
|
AGC |
Auto |
|
Alimentare/Consum |
12VDC / 120mA (IR ON - max 350mA) |
|
Lentila |
2.8-12 mm |
|
Grad protectie |
- |
|
Dimensiuni (mm) |
200(L)×70(H) |
|
Greutate (g) |
300 |
|
Temperatura stocare |
-30~ +60 °C |
|
Temperatura functionare |
-20~ +50 °C |
