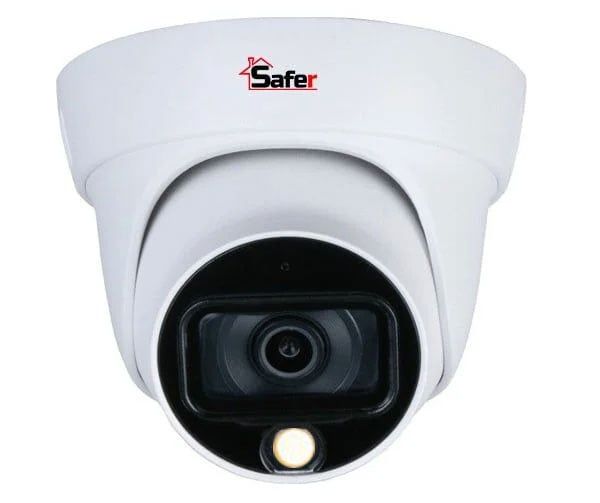

Camera de supraveghere interior STARLIGHT Full Color, 2MP, 2.8 mm, LED alb 20 m, Microfon, Safer SAF-DP2MP20F28-A-LED
|
Adauga intrebare
Produs indisponibil
Descriere
Descriere produs
Specificatii tehnice
Specificatii tehnice
- Garantie 60 luni
- Ecotax 2
- Rezolutie 2MP 1080p Full HD
- Brand Safer
- Iluminare noapte LED-uri albe 10 - 30 metri
- Destinatie Utilizare camera Interior
| Senzor de imagine | 1/2.8 inch CMOS |
| Pixeli efectivi | 1920 (H) x 1080 (V), 2MP |
| Sistem de scanare | Progressive |
| Viteza obturatorului electronic | PAL: 1/25 s–1/100000 s |
| NTSC: 1/30 s–1/100000 s | |
| Raportul S/N | >65 dB |
| Iluminare minima | 0,01 Lux/F1,6, 0 Lux lumina alba aprinsa |
| Distanta de iluminare | Distanta de pana la 20 m (65,61 ft) |
| Control pornire/oprire iluminator | Auto; manual |
| Numarul iluminatorului | 1 |
| Interval de Pan/Tilt/Rotation | Pan: 0°–360° |
| Tilt: 0°-78° | |
| Rotation: 0°–360° | |
| Obiectiv | |
| Tip de lentile | Fixed-focal |
| Tip de montare | M12 |
| Distanta focala | 2.8 mm; 3.6 mm |
| Max. Deschidere | F1.6 |
| Camp de vizualizare | 2.8 mm: 126.2° x 106° x 56.5° (diagonal x orizontal x vertical); |
| 3.6 mm: 103.6° x 86.9° x 46.3° (diagonal x orizontal x vertical) | |
| Tip de iris | Iris fix |
| Distanta de focalizare apropiata | 2.8 mm: 0.7 m (2.29 ft); |
| 3.6 mm: 1.2 m (3.94 ft) | |
| Video | |
| Frame Rate | CVI: PAL: 1080p@25 fps; 720p@25 fps; |
| NTSC: 1080p@30 fps; 720p@30 fps | |
| AHD: PAL: 1080p@25 fps; | |
| NTSC: 1080p@30 fps | |
| TVI: PAL: 1080p@25 fps; | |
| NTSC: 1080p@30 fps | |
| Rezolutie | 1080p (1920 x 1080); 720p (1280x 720); |
| 960H (960 x 576/960 x 480) | |
| BLC | BLC/DWDR |
| WDR | DWDR |
| Echilibru alb | Auto; manual |
| Obtine controlul | Auto; manual |
| Reducerea zgomotului | 2D NR |
| Lumina inteligenta | Da |
| Oglinda | Oprit/Pornit |
| Mascare de confidentialitate | Oprit/Pornit (zona 8, dreptunghi) |
| Certificari | |
| Certificari | CE (EN55032, EN55024, EN50130-4,EN60950-1) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| Port | |
| Ieșire video | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Putere | |
| Alimentare electrica | 12V ±30% DC |
| Consum | Max 3,1 W (12 V DC, lumina alba aprinsa) |
| Mediu inconjurator | |
| Temperatura de Operare | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) |
| Temperatura de depozitare | –40°C to +60°C (–40°F to 140°F); <95% (non-condensation) |
| Grad de protectie | IP67 |
| Structura | |
| Carcasa | Inner core: metal + plastic |
| Cover: plastic | |
| Pedestal: plastic | |
| Dimensiunile camere | φ97.1 mm x 91.4 mm (φ3.82" x 3.6") |
| Greutate neta | 0.21 kg (0.46 lb) |
| Greutate bruta | 0.28 kg (0.62 lb) |
Descarca de aici documentatia necesara:
