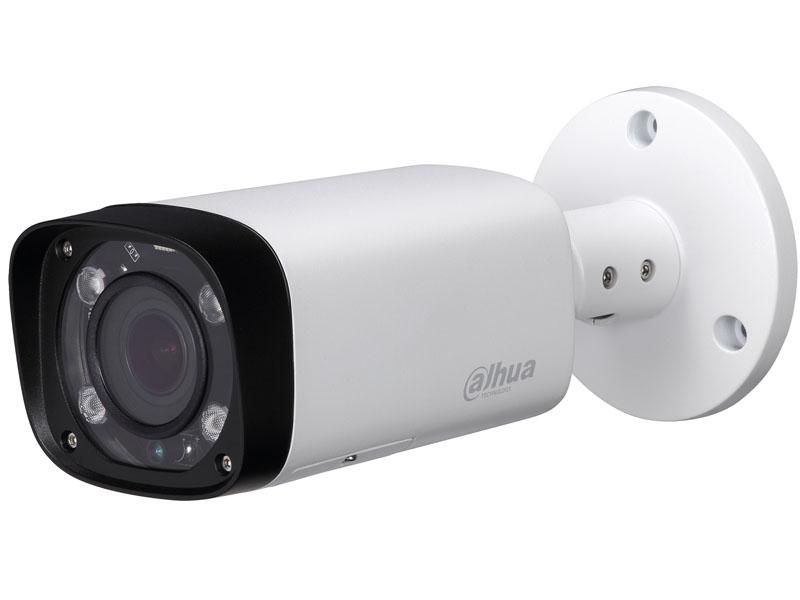

Camera de supraveghere 1 Megapixel Varifocala IR 60 metri HAC-HFW1100R-VF-IRE6
Descriere
Descriere produs
Camera de supraveghere 1 Megapixel Varifocala IR 60 metri HAC-HFW1100R-VF-IRE6. Camera de supraveghere cu lentila varifocala manuala si infrarosu puternic la 60 metri.
Cateva caracteristici:
Senzor 1 megapixel CMOS 1/2.9"
Rezolutie de inregistrare: 25/30fps@720P
Transmisie pe distanta lunga datorita datorita tehnologiei HDCVI
Filtru IR-cut automatt(ICR), AWB, AGC, BLC, 2DNR
Lentila varifocala 2.7~12mm
Distanta IR 60m, IR inteligent
Carcasa rezistenta la apa si praf fin IP67
Specificatii tehnice
Specificatii tehnice
- Garantie -
- Ecotax 0.8
- Rezolutie HD 720p (1 Mp)
- Brand Dahua
- Iluminare noapte Infrarosu 60 - 80 metri
- Destinatie Utilizare camera Exterior
Camera de supraveghere 1 Megapixel Varifocala IR 60 metri HAC-HFW1100R-VF-IRE6
| Camera | |
| Senzor de imagine | 1/3" CMOS |
| Pixeli efectivi | 1280(H)×720(V), 1MP |
| Sistem scanare | Progresiva |
| Obturator electronic | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Iluminare minima | 0.05Lux/F1.4, 0Lux IR on |
| Raport S/N | peste 65dB |
| Distanta IR | Pana la 60m (197feet) |
| IR On/Off | Auto / Manual |
| LED-uri IR | 4 |
| Lentila | |
| Tip lentila | Varifocala |
| Focalala | 2.7-12mm |
| Apertura maxima | F1.4 |
| Unghi de vizualizare | H: 89°~28° |
| Control unghi | Manuala |
| Video | |
| Rezolutie | 720P (1280×720) |
| Frame rate | 25/30fps@720P |
| Iesire video | 1-canal BNC HD / comutabil in CVBS |
| zi /noapte | ICR automat/manual |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Interface | |
| Audio Interface | N/A |
| Eelectrical | |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max 7W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection &Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56") |
| Net Weight | 0.55kg (1.21lb) |
| Gross Weight | 0.68kg (1.50lb) |
