| Standarde si Protocoale |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interfata |
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port |
| Retea media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF |
| Numar ventilatoare |
Fanless |
| Physical Security Lock |
Yes |
| Alimentator |
100~240VAC, 50/60Hz |
| Dimensiuni (L x l x H) |
17.32 x 8.7 x 1.73 in. (440 x 220 x 44 mm) |
| Montare |
Rack Mountable |
| Consum maxim |
33.52W (220V/50Hz) |
| Max Heat Dissipation |
114.37 BTU/h |
| Bandwidth/Backplane |
104Gbps |
| Packet Forwarding Rate |
77.4Mpps |
| Tabela Adrese MAC |
16k |
| Jumbo Frame |
9216 Bytes |
| Calitatea Serviciului |
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
| Caracteristici L2 și L2+ |
Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based/Private VLAN
GARP/GVRP |
| Lista Control Acces |
L2～L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
| Securitate |
IP-MAC-Port-VID Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 |
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6 |
| Aplicatii IPv6 |
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL
IPv6 Interface
IPv6 Routing
DHCPv6 Relay
DHCPv6 Snooping |
| Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
sFlow
PPPoE Circuit ID
DHCP Relay
DHCP Server
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery |
| Certificari |
CE, FCC, RoHS |
| Continut Pachet |

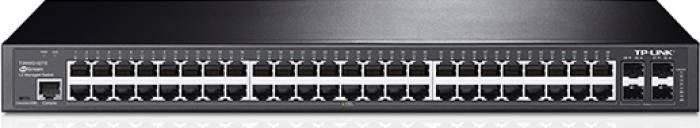

JetStream 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots T2600G-52TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
| Cerinte de sistem |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Mediu |
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
