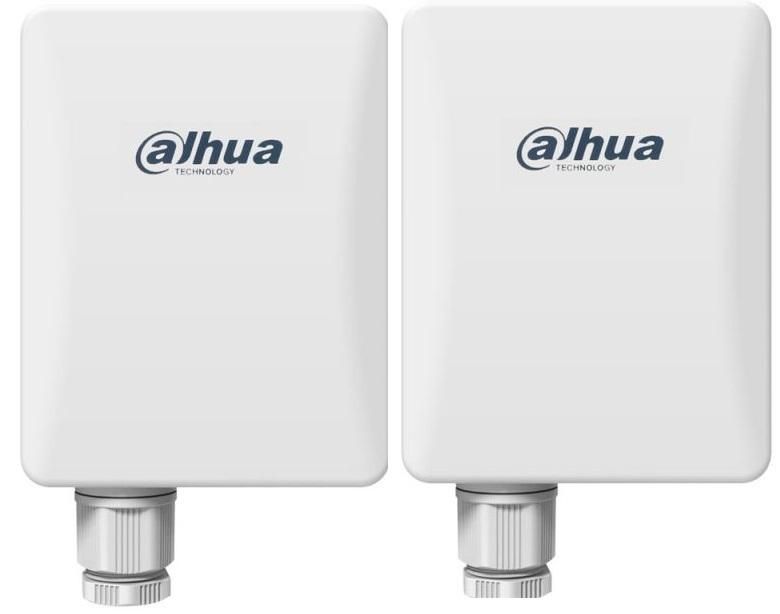

Sistem wireless transmisie / receptie camere ip 2 KM . Se foloseste in pereche. Sistemul wireless CSD -5IP poate lucra ca MASTER / SLAVE sau VIDEO BRIDGE cu o putere de 1 W poate transmite semnal audio/video de la camere IP HD de pina la 5 megapixeli.
| Mod operare | VIDEO BRIDGE, MASTER, SLAVE |
| Configuratie | point-to-point, point-to-multipoint |
| Rezolutii suportate | HD1080p, HD720p, PAL/NTSC |
| Modulare | OFDM |
| Numar de canale | 8 (CE) |
| Fregventa Radio | CE: 5470 - 5725 GHz; FCC: 5725 - 5850 GHz |
| Distanta standard operare | 2km |
| Distanta maxima (cu antena) | 5km |
| LAN input/output | 2 x RJ45 10/100 Base-TX |
| Senzitivitate receptie | -89 dBm |
| Max output power on RPSMA connector | 24 dBm /- 2 dBm |
| Output power on internal antenna | CE:30 dBm (1W e.i.r.p.) |
| Criptare | 64/128/152-bit WEP, WPA, WPA-PSK, WPA2-PSK |
| Antena interna | Internal, integrated 16 dBi MIMO (dual polarization H-V); Operation angle: H-36°, V-15°. Additional RP-SMA connectors for external antenna |
| Antena recomandata | 5,6GHz dual MIMO |
| Protectie | IP55 |
| Dimensiuni | 110 x 255 x 47 [mm] |
| Alimentare | 15V DC, 0.8A (PoE) |
| Consum | 8,5W max |
| Temperatura operare | -20°C ÷ 50°C |
