Descriere produs

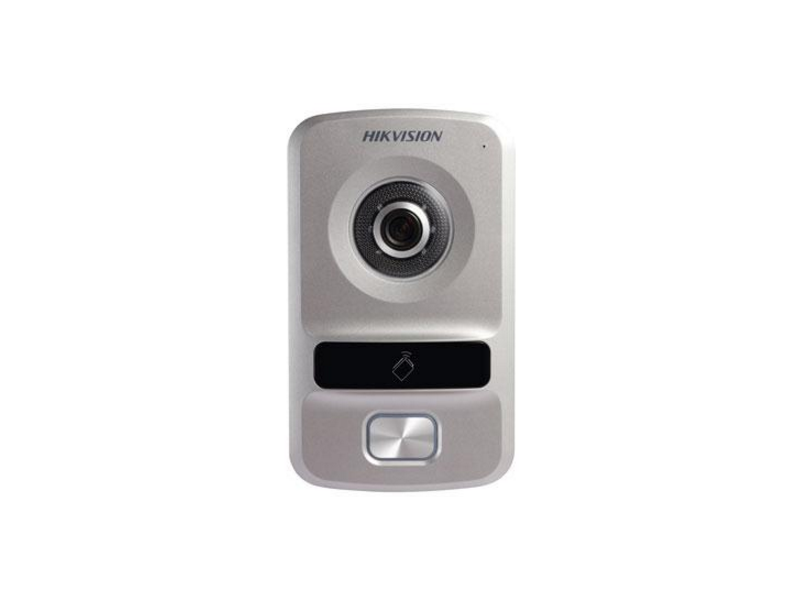

Post exterior videointerfon Hikvision DS-KV8102-IP TCP/IP. Poate lucra cu aplicatiile de mobil de la Hikvision IVMSS, si are card reader intergrat pentru control acces.
Descarca Manual pentru DS-KV8102-VP
| Caracteristici Videointerfon Hikvision DS-KV8102-VP | |
| Procesor | SOC Processor |
| Sistem de operare | Embedded Linux Operation System |
| Video | |
| Camera: | CMOS 1.3 MP HD Colorful Camera |
| Compresie | H.264 |
| Resolution: | 1280 x 720 |
| FPS: | 25 fps |
| Audio | |
| Audio Input: | Microfon Omnidirectional |
| Audio Output: | Difuzor incorporat |
| Compresie Audio | G.711 U |
| Retea | |
| Ethernet: | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol: | TCP/IP, RTSP |
| Control acces | |
| Reader Intern | IC Card |
| Exit button: | Exit Button for Opening the Door |
| Door Magnetic Detection: | Detects Door Magnetic Status |
| Lumina | |
| Lumina pe timp de noapte | Da |
| Alarma | |
| Alarm Input: | Contact magentic, Tamper |
| Interfata | |
| Retea | 1 RJ-45 10/100 Mbps |
| RS-485: | 1 RS-485 Half-Duplex Port |
| I/O Input: | 4 |
| I/O Output: | 1 |
| General | |
| Material: | Plastic |
| Alimentare | 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) |
| Consum | ≤12 W |
| Temperatura de lucru | -40° C to +70° C (-40° F to 158° F) |
| Umiditate | 10% to 90% |
| Clasa de protectie | IP65 |
| Dimensiuni(L × W × H): | 164 mm × 97 mm × 54.4 mm |
| Ceritificare | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
