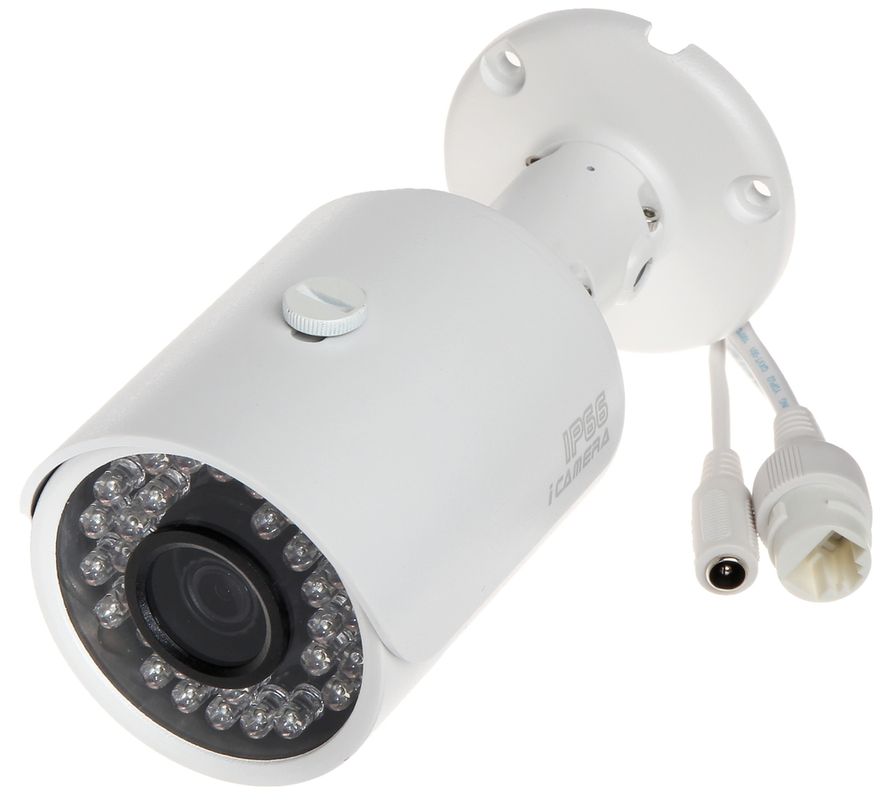

Camera de supraveghere video IP Dahua IPC-HFW1300SP-R are un senzor de imagine 1/3" CMOS cu rezolutie de 3MP. Proiectorul SMART IR ofera imagini pe timp de noapte pe o distanta de pana la 30m. Carcasa tip "Bullet" fabricata din metal rezistenta la intemperii.
| Camera | |
| Senzor | 1/3" 3MP Progressive scan CMOS |
| Format video | PAL |
| Pixeli efectivi | 2048x1536 |
| Day/Night | Auto(ICR)/ Color/ A/N |
| Iluminare minima | 0.1Lux/F1.6(color), 0 Lux IR pornit |
| Raport S/N | >50dB |
| Gain Control | Auto/ Manual |
| White Balance | Auto/ Manual |
| Backlight Compensation | BLC/ HLC/ DWDR |
| Electronic Shutter | Auto/Manual, 1/3s~1/10,000s |
| Lentila | 3.6mm |
| Unghi vizualizare | H: 71.9° |
| Zone private | 4 zone dreptunghiulare |
| Distanta maxima IR | 30m |
| Video | |
| Compresie | H.264/ MJPEG |
| Rezolutie | 3M(2048x1536)/ 1080PM(1920x1080)/ 720P(1280x720)/ D1(704x576)/ CIF(352x288) |
| FPS | Main Stream: 3M(1~20fps)/ 1080P(1~25fps) |
| Extra Stream: D1/CIF(1~25fps) | |
| Bit Rate | H.264: 16K~8192kbps |
| Retea | |
| Ethernet | RJ-45(10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, |
| NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS | |
| Compatibilitate | ONVIF, CGI |
| Numar utilizatori | Maxim 20 utilizatori logati simultan |
| General | |
| Alimentare | DC12V, PoE (802.3af) |
| Consum | Maxim 4W |
| Mediu functionare | -30°C ~ +60°C, umiditate relativa <90% |
| Standard protectie | IP66 |
| Dimensiuni | Ø70mm x 66mm x 160mm |
| Greutate | 0.42Kg |
