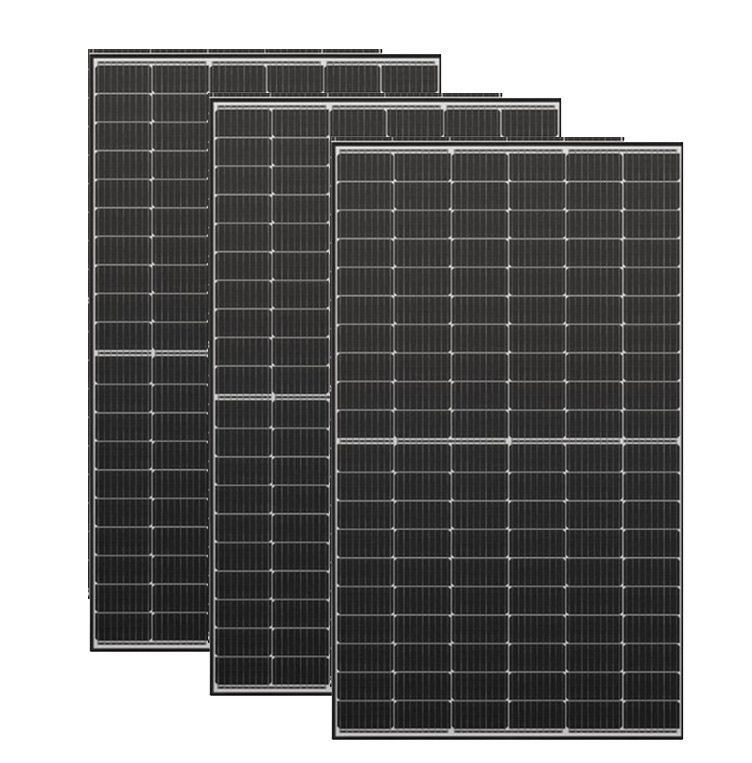

Set 13 buc panou fotovoltaic monocristalin 550W SpolarPV, 13XSP550HM6-72L
|
Adauga intrebare
Produs indisponibil
Descriere
Descriere produs
Cu ajutorul panourilor solare, veti putea economisi energia, deoarece acestea transforma radiatiile solare in energie electrica.
Acestea au o putere de 550 W cu o eficienta de 21.3%. Temperatura de operare este cuprinsa intre 40℃ - +85℃. Dimensiunile unui panou sunt 2278×1135×35mm, iar greutatea de 28.0 kg.
Acestea sunt protejata de vant, apa, zapada sau alte intemperii, avand indexul de protectia IP68.
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- Brand SpolarPV
| Cell Type | Mono-crystalline 182×91 mm |
| No.of cells | 144 (6×24) |
| Dimensions | 2278×1135×35mm |
| Weight | 28.0 kg |
| Front Glass | 3.2mm, High Transmission,Low Iron,Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP67 Rated |
| Output Cables | 1×4.0mm², Length:900mm or Customized Length |
| Power tolerance | 0~+5W |
| Temperature coefficients of Pmax | -0.350%/℃ |
| Temperature coefficients of Voc | -0.275%/℃ |
| Temperature coefficients of Isc | 0.045%/℃ |
| Operating Temperature(℃) | -40℃~+85℃ |
| Maximum system voltage | 1500V |
| Maximum series fuse rating | 25A |
| Nominal operating cell temperature | 45±2℃ |
| Maximum Power -Pmax (W) | 416 |
| Maximum Power Voltage - Vmp (V) | 39.66 |
| Maximum Power Current - Imp (A) | 10.55 |
| Open-circuit Voltage - Voc (V) | 46.67 |
| Short-circuit Current - Isc (A) | 11.17 |
| Maximum Power -Pmax (W) | 550 |
| Maximum Power Voltage - Vmp (V) | 42.61 |
| Maximum Power Current - Imp (A) | 12.91 |
| Open-circuit Voltage - Voc (V) | 50.12 |
| Short-circuit Current - Isc (A) | 13.67 |
| Module Efficiency STC (%) | 21.30% |
Descarca de aici documentatia necesara:
