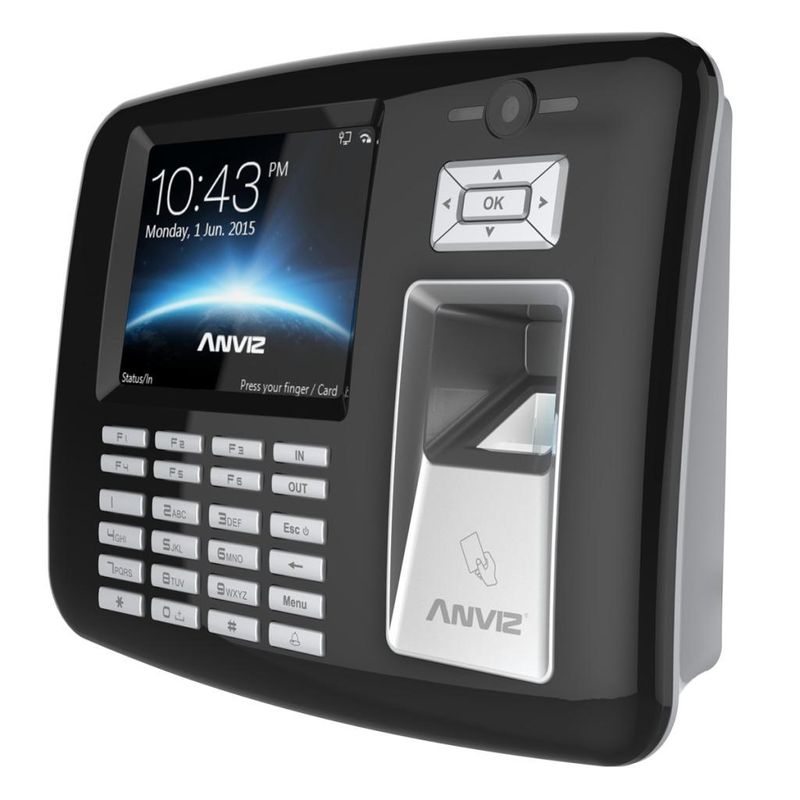

Centrala de pontaj cu amprenta si card cu camera foto Anviz OC1000Pro
Descriere
Descriere produs
OA1000Pro este un produs emblematic de identificare a amprentelor digitale produs de Anviz, bazat pe sistemul de operare Linux.
Centrala de pontaj cu amprenta si card cu camera foto Anviz OC1000Pro. Este o centrala evoluata de pontaj, care poate face snap shot la fiecare intrare / iesire si sa salveze imaginile in baza de date. Alimentator inclus.
Caracteristici:
• Este o centrala dual CPU cu o verificare rapida < 0,5 secunde si cu 10000 de utilizatori
• Camera 1,3 MP pentru snap - shot si salvare a imaginilot
• Server Web integrat, pentru un management rapid
• Conectare TCP/ IP sau RS485
• 2 Relee de comanda in sistemele de securitate
• Cititor de carduri RDIF inclus 125 KHZ.
O caracteristica importanta, aceasta centrala de pontaj este compatibila cu CrossChex CLOUD, o aplicatie de pontaj care ruleaza in server de Cloud direct la producator. Acest tip de aplicatie, dispune si de interfata direct pe telefonul tau mobil de tip smart.
Atentie! Aceste produse se instaleaza de personal autorizat. Nu oferim suport tehnic pentru sistemele de control acces si pontaj.
Specificatii tehnice
Specificatii tehnice
- Ecotax 0.8
- Brand Anviz
| Item | Description |
|---|---|
| Model | OA1000 Pro |
| Sensor | AFOS |
| Scan Area(W*H) | 18mm*22mm | 13.9mm*17.4mm | 14.6mm*18.1mm |
| Resolution | 500 DPI |
| FRR | 0.001% |
| FAR | 0.00001% |
| LCD | 3.5 Inch TFT Display |
| Camera | 1.3 Million Pixel Camera |
| Fingerprint Template Capacity | 10,000(1:N), 200,000(1:1)(BioNANO)-OA1000 Pro |
| Fingerprint Template Capacity | 1,000 (1:N), 50,000 (1:1)(Lumidigm Algorithm) | 10,000(1:N), 50,000(1:1)(Anviz BioNANO Algorithm)-OA1000 Mercury Pro |
| Fingerprint Template Capacity | 1,000 (1:N), 50,000 (1:1)(U.ARE.U Algorithm) | 10,000(1:N), 50,000(1:1)(Anviz BioNANO Algorithm)-OA1000 URU Pro |
| Log Capacity | 200,000 |
| User Photo Capacity | 500 Support 32G SD card |
| Support RFID Card | 125KHZ EM |
| ldentification Mode | FP, Card, ID+FP, ID+PW, PW+Card, FP+Card |
| Identification Time | 1: 10,000 |
| Communication Interface | TCP/IP, RS232, USB Flash Drive Host, Optional WIFI, 3G |
| Webserver | Internal Webserver |
| Internal Relay | 2 Relays Output (Directly Lock control & Alarm output) |
| I/O | Wiegand In&Out, Door Contact, Switch Open, Door Bell |
| Image Display | User Photo & Fingerprint Image |
| Short Message | 50 |
| Scheduled Bell | 30 Scheduleds |
| Self-service Record Inquiry | Yes |
| Groups & Time Schedules | 15 Groups, 32 Time Zones |
| Certificate | CE, FCC,RoHS |
| Tamper Alarms | Yes |
| Operating Voltage | DC 12V (alimentator inclus) |
| Size(W*H*D) | 180*137*40mm | 180*137*50mm | 180*137*40mm |
| Temperature | Preferred Operating: -20℃~ 60℃; Preferred Storage: 0℃ ~ 50℃; |
| Preferred Humidity | 10 to 90% |
| Firmware Update | USB Flash Drive, TCP/IP, Webserver |
