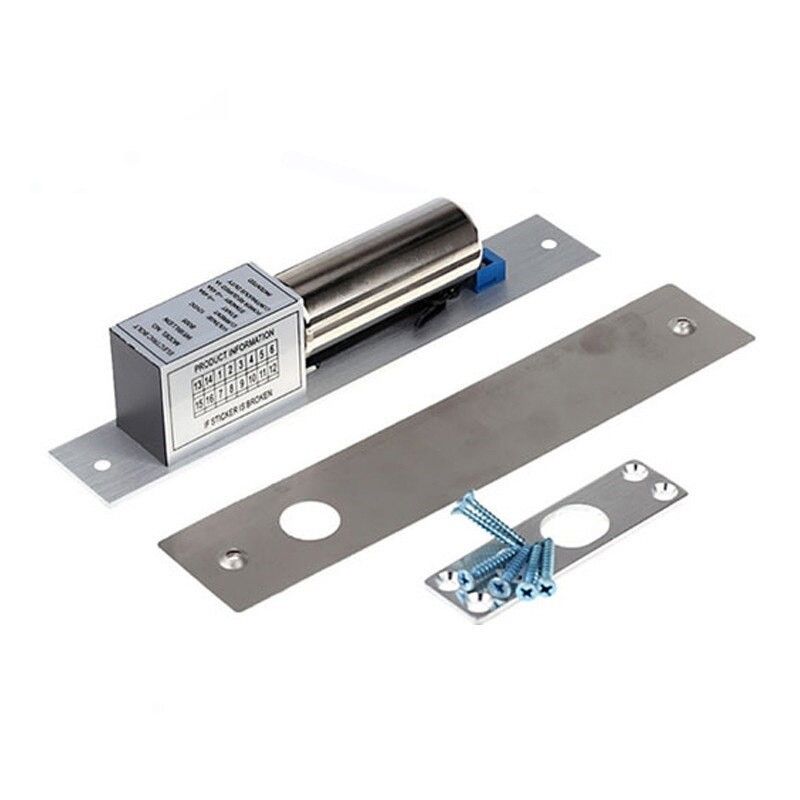

Bolt electric Fail Safe, ACM-Y100-S
|
Adauga intrebare
Produs indisponibil
Descriere
Descriere produs
Bolt electric de inalta siguranta, se utilizeaza in sistemele de control acces, construit dintr-o carcasa solida, lucreaza la temperaturi joase si are un consum redus de energie.
Tip mecanism: Fail-safe
Yala se deschide doar atunci cand se intrerupe curentul, atunci cand este alimentata la curent este inchisa
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- Ecotax 2
- Brand Atu Tech
| Feature | Fail Safe |
| Face Plate | 205Lx35WX40H(mm) |
| Strike | 90Lx25Wx2H(mm) |
| Voltage | DC12V |
| Start Current | 900mA |
| Standby Current | 120mA |
| Solid Bolt | polishing housing, 800Kg Holding Force |
| Suitable For | Wooden Door,Glass Door,Metal Door,Glass Door |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10~+55℃(14~131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 cycles |
| Face place material | High Aluminum |
| Weight | 0.72kg |
