Descriere produs
Accepta camere speciale, inclusiv camere care dispun de functia People Couting (numarare persoane), camere ANPR (recunoastere automata a placutelor de inmatriculare) si camere Fisheye.

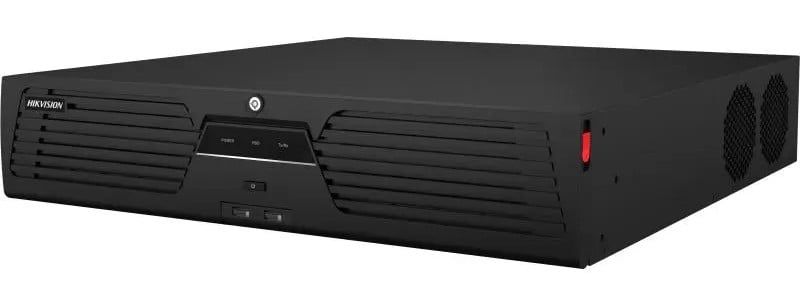

NVR 32 canale 32MP Hikvision, 320 Mbps, 8x SATA, 1x eSATA, RAID, DS-9632NI-M8
|
Adauga intrebare
Descriere
Descriere produs
Accepta camere speciale, inclusiv camere care dispun de functia People Couting (numarare persoane), camere ANPR (recunoastere automata a placutelor de inmatriculare) si camere Fisheye.
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- Ecotax 2.00
- Rezolutie 32 Megapixeli (8K)
- Brand Hikvision
| IP Video Input | 32-ch |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| HDMI 1 Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: Când rezoluția de ieșire HDMI 1 este 8K, rezoluția maximă de ieșire HDMI 2 este 1080p. |
| VGA 1 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 2 Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI 1 și VGA 1 oferă ieșire video simultană și funcționează ca ieșire principală; HDMI 2 și VGA 2 oferă ieșire video simultană și funcționează ca ieșire auxiliară |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), rezoluție: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ, utilizând intrarea audio) |
| Decoding | Format de decodare: H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Decoding Capability | 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Auxiliary Interface | Serial Interface: 1 RS-485 (full-duplex), 1 RS-232 |
| SATA: 8 SATA interfaces | |
| eSATA: 1 eSATA interface | |
| Capacity: Up to 14 TB capacity for each disk | |
| Alarm In/Out | 16/9 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| Ctrl 12V | Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9. |
| DC 12V | 12 VDC, 1 A power output |
| General Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Chassis | 2U chassis |
| Dimension (W × D × H) | 445 × 465 × 93 mm (17.5"× 18.3" × 3.7") |
| Weight | ≤ 10 kg (without HDD, 22 lb.) |
