Parametrii de baza

Model

MS-C3671-P

Tip

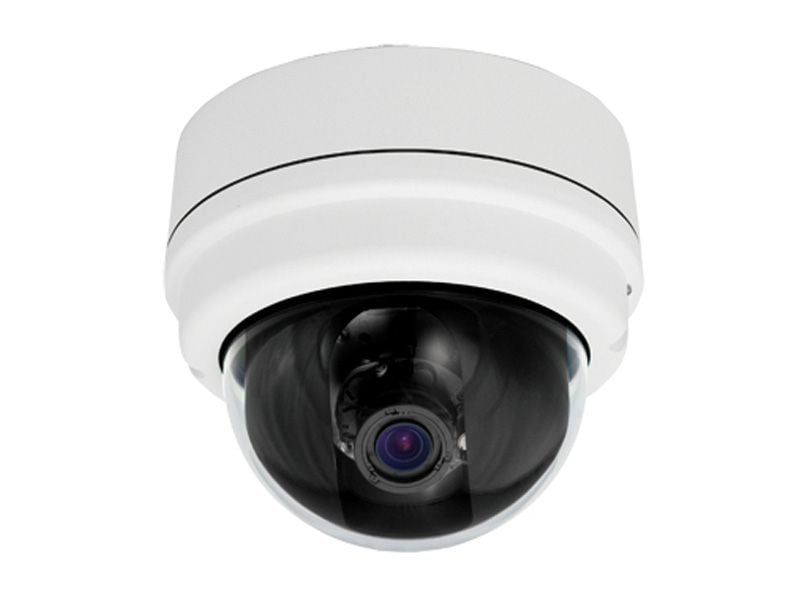

Camera de supraveghere HD IP  2 Megapixeli  DOME ANTIVANDAL

Senzor de imagnie

1/2.5" Progressive Scan  CMOS

Iluminare minima

Color:0.5Lux @(F1.2, AGC ON) | B/W: 0Lux with IR

Electronic Shutter Speed

1/25(1/30) s to 1/100,000 s

Lentila

CS  3,6 mm

Zi / Noapte

ICR filter Auto switch

Imagine

Rezolutie imagine max.

1920x1080

FPS

30fps(1920x1080), 30fps(1280×960), 30fps(1280×720), 30fps(704×576)

Parametrii imagnie

Luminozitate, Constrast, Saturatie reglabili din web-brower

Standard Compresie

Compresie Video

H.264/MJPEG/MPEG-4

Rata Video VBR

64Kbps～8Mbps (CBR/VBR adjustable)

Compresie Audio

G .711

Interfata

Comunicare

1 RJ45 10M/100M Ethernet port

Video out

1Vp-p Composite Output (75Ω/BNC) (Optional)

Functii

Alarma

Detectie miscare, Lipsa semnal video, Retea cazuta, Audio

Compatibilitate

ONVIF / PSIA

Protocoale retea

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,SMTP,UPNP

Functii generale

Buton de reset, 2 Streamuri video simultan, protejat cu parola

Functii avansate

Motion detection, Mask privacy, Backlight compensation, 3D Noise Reduction

General

Temperatura lucru

-20℃~60℃

Umiditate lucru

0~90%(non-condensing)

Alimentare

DC12V±10% / PoE

Distanta IR

0 m

Clasa de protectie

IP56

Consum

4,5W MAX

Dimensiuni

Φ150×109 mm

Greutate

1060g
