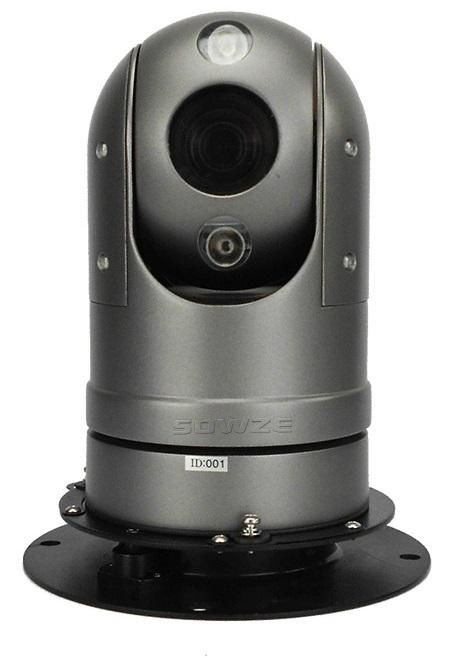

Camera speed dome IP 4G cu atasare prin magnet zoom 20X IR 80M
Descriere
Descriere produs
Camera speed dome IP 4G cu atasare prin magnet zoom 20X IR 80M. Se poate folosii cu succes pentru masinile de politie, armata sau jandarmerie care pleacaa in misiune. Transmisie GSM 4G catre dispecerat. Suport de prindere magnetic pentru montaj pe plafon.
- Rezolutie 1,3 mp
- IR 80 metrii
- Alimentare 10.5V~DC18V
- 4,7-94 mm
- Grad de protectie IP66
Specificatii tehnice
Specificatii tehnice
- Ecotax 4
- Rezolutie HD+ 1080 Lite (1,3 Mp)
- Brand Safer
- Iluminare noapte Infrarosu 60 - 80 metri
| SW-MIP7120M-LA | |
| Image Device | 1/3" Progressive Scan CMOS |
| Effective Pixels | 1.3 Megapixel |
| Resolution | 1280*960@30FPS |
| Min illumination | 0.1Lux/F1.4(Color) 0.005Lux/F1.4(B/W) 0Lux/F1.4(IR on) |
| IR Range | Over 80 meter |
| White Balance | ON/OFF, auto/indoor/outdoor |
| AGC | Auto/Manual |
| S/N Ration | >50dB |
| Electronic Shutter | P:1/3~1/10,000s N:1/4~1/10,000s |
| D/N Mode | Day & Night (IR cut) |
| WDR | ON/OFF optional |
| Digital zoom | 20 x optical ZOOM,12 x electronic amplifier |
| Privacy Zone | 8 zones |
| Focusing | Auto/Manual |
| Lens length | 4.7-94mm |
| Preset | 128 |
| Cruise Scanning | 6 cruises, 16presets for each cruise,128 preset positions |
| Pattern scanning | 4 sets, 180s PTZ memory |
| Horizontal Preset Speed | 160°/S |
| Vertical Preset Speed | 120°/S |
| Horizontal Manual Controlling Speed | 0.4°~80°/S |
| Vertical Manual Controlling Speed | 0.4°~60°/S |
| Horizontal Rotation | Pan: 0~360º |
| Vertical Rotation | +45°~-90° |
| Power Off Memory | Remember the state before power outage, including horizontal and vertical location, and lens zooming, resume when restarting |
| Auto Parking | Auto call up of preset/ patrol/ pattern/tilt scan/random scan/frame scan/panorama scan, after a defined time of inactivity |
| OSD menu | Chinese/English |
| Alarm (optional) | 2 inputs, 1 output; can be preset point linkage, cruise scan, pattern scan, trigger switch output the client electronic map |
| PTZ Control Protocol | PELCO-P, PELCO-D(can be added) |
| Power Supply | DC10.5V~DC18V(3.5A, Vehicle);AC24V(2.5A, Normal) |
| Power Consumption | 50W max |
| Protection levels | IP66 lightning protection, anti-surge |
| Operation Temperature | -40°C~+65°C |
| Shock Resistance | ≥4G |
| net weight | 3KG |
