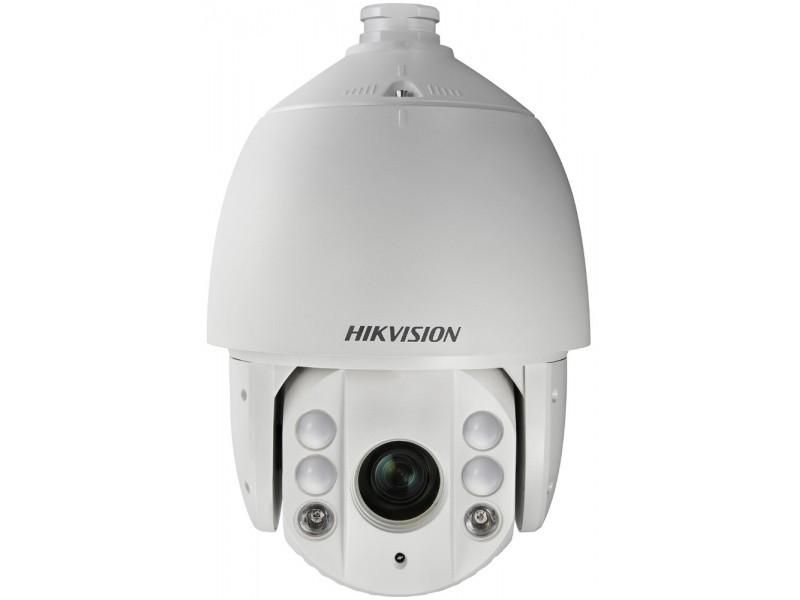

Camera IP Speed Dome 2MP, zoom optic 30X, Hikvision DS-2DE7230IW-AE
Descriere
Descriere produs
Camera ip Speed Dome 2MP pentru supraveghere profesionala cu zoom optic 30X si zoom digital de 16X Hikvision DS-2DE7230IW-AE, vedere pe timp de noapte pana la 150 metri.
Noua camera Hikvision DS-2DE7230IW-AE vine echipata u un senzor CMOS 1/2.8" CMOS cu rezolutie maxima FULL HD 1920x1080, si distanta maxima de iluminare infrarosu de 150m. Camera are o lentila varifocala de la 4.3 la 129 mm ce are un unghi de vizualizare de la 58.3 - 3.2 grade. Unghiul de rotire este de 360 de grade pe orizontala si 90 grade pe verticala. Speed dome-ul are zoom optic 30X si zoom digital 16X. Pentru functionare necesita o tensiune de alimentare de 24V curent alternativ.
|
Camera IP Speed Dome 2MP zoom 30X Hikvision DS-2DE7230IW-AE - Descarca fisa tehnica |
|
|
Senzor de imagine |
1/2.8’’ Progressive Scan CMOS |
|
Iluminare minima |
F1.6, AGC On: Color: 0.05 lux, B/W : 0.01lux, 0 lux with IR |
|
Lentila |
4.3 ~ 129mm, 30X OPTIC |
|
FPS |
Main stream: 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; 60Hz: 30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) Sub stream: 50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240) Three stream: 50Hz:25fps (1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz: 30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240) |
|
Zi/ Noapte |
IR Cut Filter |
|
Pan/Tilt/Zoom |
Pan: 360° endless; Tilt:: -15° ~ 90°(Auto Flip ) |
|
Digital Noise Reduction |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
Indoor/Outdoor |
DA |
|
Distanta IR |
Max 150m |
|
Protocoale |
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
|
Protectie la APA |
IP66 |
|
Alimentare |
24 VAC, max. 40W |
|
Card SD |
Da, maxim 128 GB (nu este inclus) |
|
Temperatura operare |
-30 °C ~ 65°C Umiditate <90% |
|
Dimensiuni |
Φ220×353.4mm |
|
Greutate |
4.5kg |
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- Ecotax 11
- Rezolutie 2MP 1080p Full HD
- Brand Hikvision
- Iluminare noapte Infrarosu > 100 metri
- Destinatie Utilizare camera Exterior
| Camera | |
| Iluminare minima | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01lux, 0 lux with IR |
| AGC: | Auto/Manual |
| S/N Ratio: | ≥ 52dB |
| BLC: | ON/OFF |
| HLC: | Suporta |
| Smart defog: | Suporta |
| WDR: | Suporta |
| Shutter Time: | 1-1/10,000s |
| Zi&Noapte | ICR |
| Zoom digital | 16X |
| Privacy Masking: | 8 programabile |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Lentila | |
| Varifocala | 4.3-129.0mm, 30x |
| Viteza zoom | Aprox. 3s (Optical Wide~Tele) |
| Unghi vizualizare | 58.3 - 3.2 |
| Distanta minima de functionare | 10~1,000mm(Wide~Tele) |
| Interval deschidere | F1.6-F5.0 |
| Pan & Tilt | |
| Viteza Pan | 0.1°~160°/s, Pan Preset Speed: 240°/s |
| Viteza Tilt | 0.1°~120°/s, Tilt Preset Speed: 200°/s |
| Numar preseturi | 300 |
| Patrula: | 8 patrule, pana la 32 preseturi per patrula |
| Alarma | |
| Aactiuni alarma: | Presetari, Patrula, Pattern, Inregistrare, Iesire releu |
| Retea | |
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector |
| Compresie auto | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Protocoale: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Utilizatori simultani | Pana la 20 utilizatori |
| Three-Stream: | Suporta |
| User/Host Level: | Pana la 32 utilizatori, 3 nivele: administrator, operator si utilizator |
| Masuri de siguranta: | Autentificare utilizator (ID and PW), |
| Autentificare gazda (MAC address) | |
| Filtrare adresa IP | |
| Client GUI | |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 + |
| General | |
| Alimentare | 24 VAC & Hi-PoE |
| Consum | Max.40W |
| Temperatura / umiditate functionare | temperatura -30°C ~ 65°C / umiditate <90% |
| Nivel protectie | IP66, protectie anti-traznet TVS 4000V |
| Dimensiuni: | Φ220×353.4mm |
| Greutate (aprox.): | 4.5kg |
