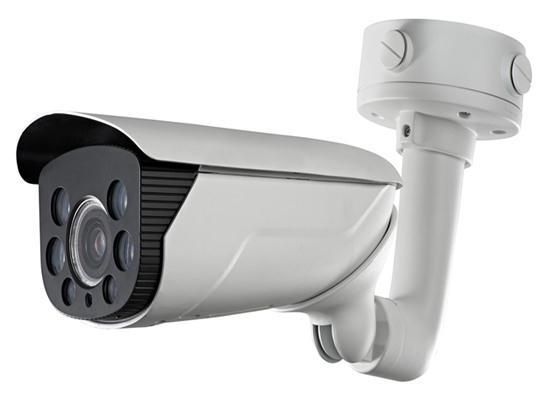

Camera IP LPR HIKVISION DarkFighter DS-2CD4626FWD-IZ
Descriere
Descriere produs
Camera video supraveghere IP LPR HIKVISION DS-2CD4626FWD-IZ(H)(S) DarkFighter optimizata pentru vizualizarea numerelor de inmatriculare.
Transmite text (string search) numarul de inmatriculare (recognition accuracy: pana la 96% (Speed Support up to:70km/h) catre NVR-ul HIKVISION DS-DS-7732NI-I4 (Vezi produse asociate) sau versiunea LPR a server-ului Hikvision iVMS 5200-P16 .
-rezolutie 2 MegaPixel Full HD 1920x1080 50 fps respectiv LPR 1920x1080pixeli 20 fps
-120dB TrueWideDynamicRange
-iluminator IR EXIR efectiv pana la 70 metri (20 metri pentru LPR)
-Hikvision DarkFighter optimizata pentru Day&Night: 0.002 Lux; DEFOG
-Obiectiv VariFocal 2.8-12mm motorizat ( 92°~32 deschidere ) cu comanda de la distanta; obiectiv cu Auto Focus automat
-AutoIRIS DC Drive; -slot MicroSD pentru pana la 128GB
-FARA Alarm IN/OUT 1/1= nu poate comanda bariere de pe camera!
-CVBS Video Out (mufa pe placa, fara BNC mufat)
-1 RJ45 10M/100M Ethernet port;
-analiza SMART: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
-alimentare 24 V AC ± 10% cu sursa neinclusa (HKA-A24220-230), 24W sau PoE (802.3at); dimensiuni 158×338×560 m, 6.2kg
-pentru utilizare la exterior Weatherproof IP67; -30C pana la +60C
Specificatii tehnice
Specificatii tehnice
- Garantie 36 luni
- Ecotax 0.8
- Rezolutie 2MP 1080p Full HD
- Brand Hikvision
- Iluminare noapte Infrarosu 40 - 50 metri
- Destinatie Utilizare camera Exterior
| Camera | |
| Senzor imagine | 1/1.8" Progressive Scan CMOS |
| Sistem semnal | PAL/NTSC |
| Iluminare minima | 0.002 Lux @ (F1.2, AGC ON), |
| 0.0027 Lux @ (F1.4, AGC ON), | |
| 0 Lux with IR | |
| Shutter time | 1s ~ 1/100,000s |
| Slow shutter | Support |
| Lentila | 2.8~12mm @ F1.4, 92°~32° |
| Auto Iris | DC drive |
| Day& Night | Filtru IR cut automat |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Standard compresie | |
| Compresie video | H.264+/H.264/MPEG4/MJPEG |
| Codec H.264 | Baseline Profile / Main Profile / High Profile |
| Video bit rate | 32Kbps~16Mbps |
| Compresie audio | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Triple Streams | Yes |
| Imagine | |
| Rezolutie maxima | 1920 x 1080 |
| Frame Rate | 50Hz: 50fps(1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Third Stream | Independent with Main Stream and Sub Stream, up to |
| 50Hz: 25fps(1920 × 1080); 60Hz: 30fps (1920 × 1080) | |
| Functii imagine | BLC/3D DNR/ROI/Defog/EIS |
| Setari imagine | Mod rotatie, Saturatie, Luminozitate, Contrast, Claritate - ajustabile din software sau browser web |
| Corectia distorsiunii | DA |
| Decupare target | DA |
| Picture Overlay | LOGO poate fi pus peste video in format bmp 128x128 24bit |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Retea | |
| Stocare retea | NAS (Support NFS,SMB/CIFS), ANR |
| Trigger alarma | Detectie miscare, alarma tamper, deconectare retea, conflict adresa IP, exceptii stocare |
| Protocoale | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Functii generale | Autentificare utilizator, Watermark, filtrare adresa IP |
| Compatibilitate sistem | ONVIF (Profile S, Profile G),ISAPI |
| Interfata | |
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out |
| intrare audio | 1-ch 3.5 mm audio, MIC IN/LINE IN |
| Iesire audio | 1-ch 3.5mm audio |
| Interfata comunicare | 1 RJ45 10M / 100M Ethernet interface and 1 RS-485 interface |
| Alarma | 1 intrate, 1 iesire(pana la DC24V 1A sau AC110V 500mA ) |
| Intrare alarma | 1 |
| Iesire alarma | 1 |
| Intrare video | 1 RJ12 interface |
| Iesire video | 1Vp-p Composite Output (75 Ω, BNC) |
| Stocare incorporata | Slot Micro SD/SDHC/SDXC, pana la 128 GB |
| Buton RESET | DA |
| Audio | |
| Filtrare zgomot de fundal | DA |
| Audio I/O: | Suport dual audio track, stereo |
| Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Functii inteligente | |
| Analiza comportamentala | Detectie trecere linie, detectie intrusi, intrare in regiune, iesire din regiune, bagaj abandonat, inlaturare obiect |
| Detectie trecere linie | Depasirea unei linii predefinite |
| Detectie intrusi | Intrare si asteptare intr-o zona predefinita |
| Intrare regiune | Intrarea intr-o zona predefinita dintr-o zona din exterior |
| Iesire regiune | Parasirea ueni regiuni predefinite |
| Bagaj abandonat | Obiecte abandonate intr-o zona predefinita: bagaje, genti, materiale periculoase |
| Inlaturare obiect | Obiecte inlaturate dintr-o zona predefinita (obiecte de muzeu) |
| Recunoastere | Recunoastere facial |
| Statistici | Numarare de obiecte (intrarea si iesirea obiectelor, numararea lor si afisarea pe ecran in timp real) |
| General | |
| Conditii de operare | -30 °C – 60 °C |
| Alimentare | 24 VAC ± 10% / PoE (802.3af) |
| Consum | Max. 24 W |
| Protectie la impact | IK10 |
| Index protectie | IP66 |
| IR | Pana la 50m |
| Dimensiuni | 158×338×560 mm |
| Greutate | 6200 g |
