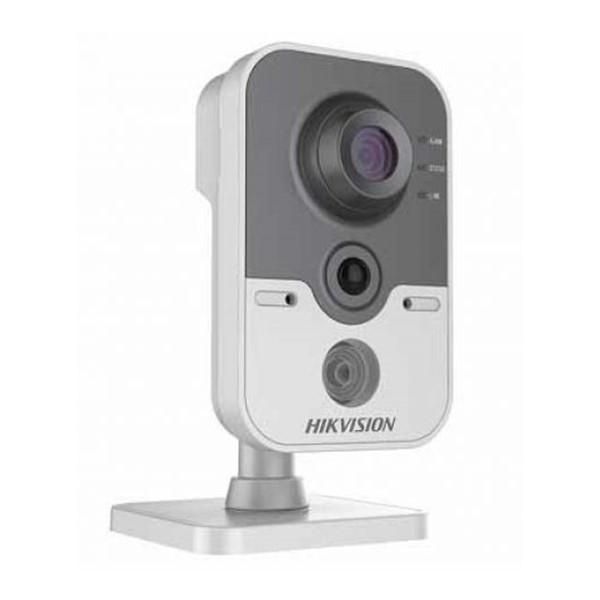

Camera IP cube Wifi 1,3 MP Hikvision
Camera Hikvision DS-2CD2410F-IW are un senzor de imagine de 1,3 MP si inregistreaza imagini la rezolutie 720p. Are o lentila fixa de 4 mm care ofera un unghi de vizualizare de 73.1°.
Pe timp de noapte inregistreaza imagini pe o distanta de pana la 10 metri, cu ajutorul LEDurilor infrarosu. In plus, are o serie de functii de imagine utile, care cresc calitatea imaginii: Digital WDR si 3DNR.
Descarca Certificatul de conformitate.
| Camera | |
|---|---|
| Senzor de imagine | 1/3" Progressive Scan CMOS |
| Iluminare minima | 0.01 lux @F1.2, AGC ON, 0 lux with IR |
| Diafragma | 1/3s ~ 1/100,000s |
| Lentila | 4mm@ F2.0, unghi de vizualizare 73.1° |
| Zi&Noapte | IR cut filter automat |
| Wide Dynamic Range: | Digital WDR |
| Digital noise reduction: | 3D DNR |
| Standard compresie | |
| Compresie video | H.264/MJPEG |
| Video bit rate: | 32Kbps~12Mbps |
| Compresie audio | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1)/ 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Imagine | |
| Rezolutie maxima | 1280x960 |
| Frame Rate: | 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x720), 25 fps (704 x 576), 25 fps (640 x 480) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x720), 30 fps (704 x 576), 30 fps (640 x 480) |
| Setari imagine | Mod rotatie, Saturatie, Luminozitate, Contrast, Sharpness ajustabil prin software client sau browser |
| BLC: | Da, configurabila pe zone |
| ROI: | Da |
| Retea | |
| Stocare retea | NAS (Support NFS,SMB/CIFS) |
| Declansare alarma | Depasire linie, Detectie intrusi, detectie la miscare, analiza dinamica, alarma tamper, erori retea, conflict de adresa IP |
| Protocoale | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Compatibilitate sistem | ONVIF, PSIA, CGI, ISAPI |
| Interfata | |
| Interfata comunicare | 1 RJ45 10M / 100M Ethernet interface |
| Stocare | Micro SD/SDHC/SDXC card slot, de pana la 64 GB |
| Wi-Fi | |
| Wireless Standard: | IEEE802.11b, 802.11g, 802.11n |
| Frecventa | 2.4 GHz ~ 2.4835 GHz |
| Bandwidth canal: | 20/40MHz Support |
| Mod modulatie | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Securitate | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Putere transmisie | 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm |
| Sensibilitate receptie | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) |
| Rata transmisie | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless | 50m |
| Protocoale: | IEEE802.11b, 802.11g, 802.11n |
| General | |
| Conditii operare | -30 °C ~ 60 °C |
| Alimentare | 12 VDC ± 10%, PoE (802.3af) |
| Consum | Max. 5W |
| IR Range: | 10 metri |
| PIR: | Unghi: 80° Raza: 10m |
| Dimensiuni | 72.3×91.5×131.3 mm |
| Greutate | 400g |
