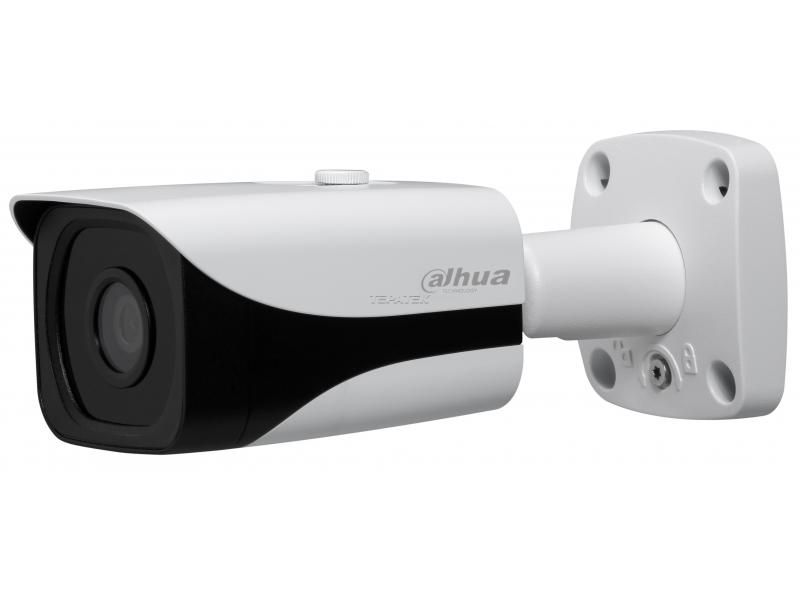

Camera ip 4MP exterior Dahua DH-IPC-HFW4431E-SE

|
Adauga intrebare
Descriere scurta

Camera ip 4MP exterior Dahua DH-IPC-HFW4431E. Camera de exterior IP 4 MPixeli, Day/Night cu IR, lentila fixa, compresie H.265 & H.264. Rezolutie 2K.



dahua_1

  • Cod produs IPC-HFW4431E-SE
  • Brand Dahua
Produs indisponibil
Vreau instalare

Solicita postare in SICAP

Descriere Specificatii tehnice Intrebari si raspunsuri Review-uri

Descriere produs

Camera ip 4MP exterior Dahua DH-IPC-HFW4431E. Camera de exterior IP 4 MPixeli, Day/Night cu IR, lentila fixa, compresie H.265 & H.264. Rezolutie 2K.



Rezolutie la superlativ cu camerele de supraveghere video IP DAHUA.







Caracteristici:



• Senzor: 1/3” 4Megapixel progressive scan CMOS

• Rezolutie maxima:2688(H)x1520(V)

• Sensibilitate: 0.01Lux/F2.0 Color), 0Lux/F2.0(IR on)

• Lentila fixa: 3.6mm

• Focus: manual



Video:

• Compresie video: H.265+/H.265/H.264+/H.264

• Rezolutie: 4M(2688×1520) / 3M(2304×1296)/1080P(1920×1080) / 1.3M(1280x960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)

• Bit rate: H.264: 24~10240Kbps / H.265: 14~6144Kbps



Retea:

• Declansare alarma : detectare intruziune, detectare trecere neautorizata, detectare miscare, alarma manipulare, deconectare de la retea, conflict adresa IP,

• Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

• Securitate : buton resetare,prevenire rapida, dual stream, protectie parola, protejarea  intimitatii personale prin ascunderea unor parti a imaginii,watermark, filtrare adresa IP, acces anonym.



Interfata:

• Interfata comunicare : RJ-45 (10/100Base-T)



General:

• Alimentare: 12VDC/PoE

• Temperatura de functionare: -30°C - +60°C

• Grad de umiditate : 95%

• Consum: Max. 6W cu IR pornit

• Dimensiuni: 180mm×70mm×70mm

• Grad de protectie: IP67, IK10

• Distanta illuminator IR: 40m

• Greutate:0.4kg



Descriere

Descriere produs

Camera ip 4MP exterior Dahua DH-IPC-HFW4431E. Camera de exterior IP 4 MPixeli, Day/Night cu IR, lentila fixa, compresie H.265 & H.264. Rezolutie 2K.



Rezolutie la superlativ cu camerele de supraveghere video IP DAHUA.







Caracteristici:



• Senzor: 1/3” 4Megapixel progressive scan CMOS

• Rezolutie maxima:2688(H)x1520(V)

• Sensibilitate: 0.01Lux/F2.0 Color), 0Lux/F2.0(IR on)

• Lentila fixa: 3.6mm

• Focus: manual



Video:

• Compresie video: H.265+/H.265/H.264+/H.264

• Rezolutie: 4M(2688×1520) / 3M(2304×1296)/1080P(1920×1080) / 1.3M(1280x960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)

• Bit rate: H.264: 24~10240Kbps / H.265: 14~6144Kbps



Retea:

• Declansare alarma : detectare intruziune, detectare trecere neautorizata, detectare miscare, alarma manipulare, deconectare de la retea, conflict adresa IP,

• Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

• Securitate : buton resetare,prevenire rapida, dual stream, protectie parola, protejarea  intimitatii personale prin ascunderea unor parti a imaginii,watermark, filtrare adresa IP, acces anonym.



Interfata:

• Interfata comunicare : RJ-45 (10/100Base-T)



General:

• Alimentare: 12VDC/PoE

• Temperatura de functionare: -30°C - +60°C

• Grad de umiditate : 95%

• Consum: Max. 6W cu IR pornit

• Dimensiuni: 180mm×70mm×70mm

• Grad de protectie: IP67, IK10

• Distanta illuminator IR: 40m

• Greutate:0.4kg



Specificatii tehnice

Specificatii tehnice

  • Garantie -
  • Ecotax 0.8
  • Rezolutie 4 Megapixeli (2K)
  • Brand Dahua
  • Iluminare noapte Infrarosu 40 - 50 metri
  • Destinatie Utilizare camera Exterior

Camera

Senzor imagine

1/3” 4Megapixel progressive scan CMOS

Pixeli

2688(H)x1520(V)

RAM/ROM

512MB/32MB

Sistem scanare

Progresiv

Viteza diafragma

Auto/Manual, 1/3(4)~1/100000s

iluminare minima

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

> 50dB

IR

40m

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lentila

Tip

Fixa

Distanta focala

3.6mm

Apertura maxima

F2.0 (F2.0)

Unghi vizualizare

H: 87° (55°), V: 48° (31°)

Zoom optic

Nu

Focus Control

Fix

DORI Distanta

Lentila

Detectie

Observatie

Recunoastere

Identificare

3.6 mm

80m

32m

16m

8m

Pan/Tilt/Rotatie

Pan/Tilt/Rotatie

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Inteligenta

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Functii inteligente avansate

Detectie faciala

Video

Compresie

H.265+/H.265/H.264+/H.264

Streaming

3 Streams

Rezolutie

4M(2688×1520)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~10240Kbps

H.265: 14~6144Kbps

Zi/Noapte

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Detectie miscare

Off / On (4 Zone, Rectangle)

ROI

Off / On (4 Zone)

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Retea

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperabilitate

ONVIF, PSIA, CGI

Metoda stream

Unicast / Multicast

Utilizatori maximi

10 Users /20 Users

Stocare Edge

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certificari

Certificari

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interfata

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electric

Alimentare

DC12V, PoE (802.3af)(Class 0)

Consum

<6W


Mediu

Conditii operare

-30° C ~ +60° C

Conditii stocare

-30° C ~ +60° C

Index protectie

IP67

Anti vandal

N/A

Constructie

Carcasa

Metal

Dimensiuni

180mm×70mm×70mm

Greutate neta

0.41kg

Greutate bruta

0.53 kg
