Camera cu termoviziune monocular senzor 12µm 384x288 pixeli lentila 35mm
|
Adauga intrebare
Produs indisponibil
Descriere
Descriere produs

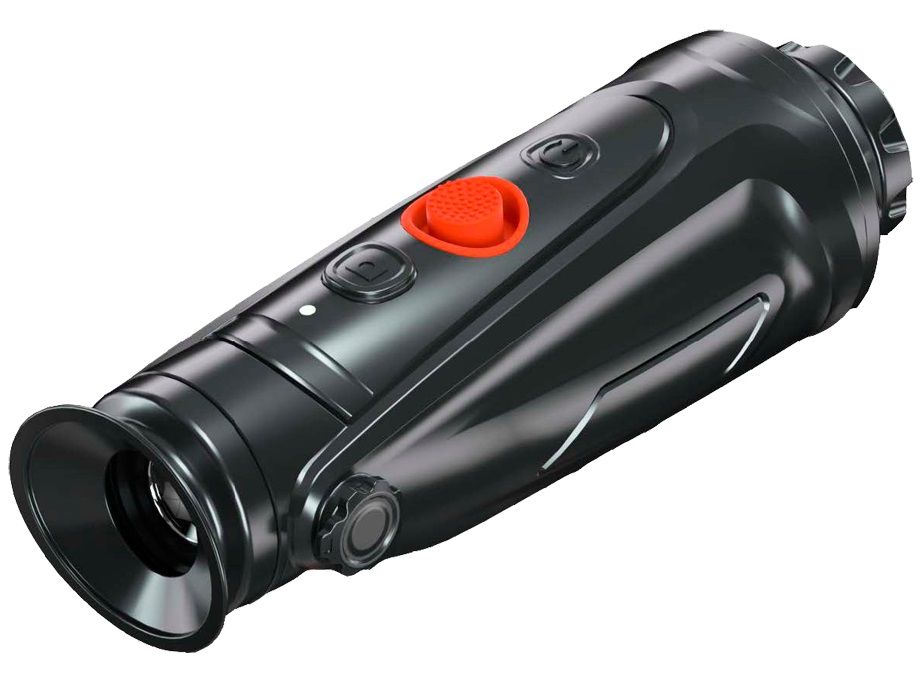

Camera cu termoviziune monocular senzor 12µm 384x288 pixeli lentila 35mm
Aplicatii : explorare exterioara, observare animale, cautare persoane, etc. Excelent pentru vanatori, fortele de ordine, graniceri, politia animalelor.
- 384X 288 VOx- NETD ≤40mK
- Dimensiunea pixelilor 12µm
- Obiectiv de 35 mm
- Increase 3,37X
- Reducerea zgomotului 3D-DNR
- 16 GB memorie interna
- Măsurarea distanței AI
- Indicator laser
- GPS
- Ecran OLED
- Captură de imagini și înregistrare video
- Ieșire video analogică
- Wifi
- APP Smartphone
- Baterie încorporată până la 12 ore de viață
- Conector USB tip C
- Protectie IP67
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- Ecotax 0.8
- Rezolutie HD 720p (1 Mp)
- Brand Termtec
| Sensor type | VOx microbolometer uncooled |
| Resolution | 384x288 pixels |
| Pixel size | 12µm |
| NETD | ≤40mK@300K |
| Spectral range | 8～14μm |
| Lens | 35mm (F#1.0, manual focus) |
| Increases | 3,37x |
| Viewing angle | 7,5º x 5,6º |
| Identification Distance (human 1,8m)) | 878m |
| Digital zoom | 1x～6x continuous |
| Color Palettes | 6 |
| Noise reduction | 3D DNR |
| Display type | OLED 0,39", resolution 1024x768 pixels, 3 picture modes |
| Dioptric control | -5～+5 |
| Eye distance | 40mm |
| Internal memory | 16 GBytes |
| Distance measurement | AI (based on deep learning), MIL |
| Heat Seeker | YES |
| GPS | Yes |
| Multimedia | Photo, video, local playback |
| Battery type | Internal battery, 18650 Li x 2 |
| Battery life | Continuous running time ≥ 12h |
| Connections | USB Type C PC connection for downloading photos and videos Device charging connection Connection for analog video output |
| Wi-Fi Wi-Fi connection with app Hotspot connection with app | |
| Operating temperature | -20℃～+55℃ |
| Protection rating | IP67, resistance to falls from 1 meters |
| Weight | 470g (with batteries) |
| Dimensions | 67mm × 63mm × 190mm |
