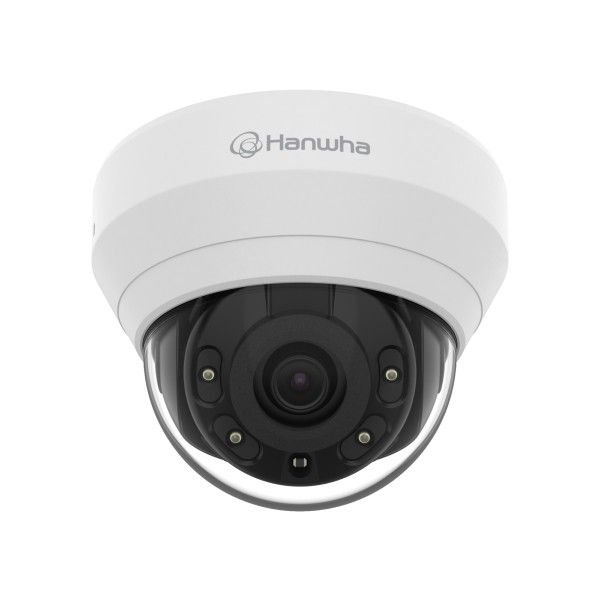

Camera IP dome antivandal Hanwha Vision, 8MP, 30fps, lentila varifocala motorizata 3.2-10.2mm, IR 30m, WDR 120dB, PoE, IP66, IK10, QNV-C9083R
Adauga un review
|
Adauga intrebare
PRP: 4230 , 99 Lei
3799, 99 Lei
Diferenta: 431 , 00 Lei
In stoc
Descriere
Descriere produs
Specificatii tehnice
Specificatii tehnice
- Garantie 24 luni
- Ecotax 0.8
- Brand Hanwha
- Audio camere IP Fara microfon sau difuzor
- Destinatie Utilizare camera Mixt (Interior+Exterior)
| Caracteristica | Detalii |
|---|---|
| Producator | Hanwha Vision |
| Model | QNV-C9083R |
| Serie | Q Series |
| Tip camera | Camera IP Dome antivandal cu AI si IR |
| Rezolutie maxima | 8MP, 3840 x 2160 pixeli |
| Senzor imagine | 1/2.8 inch CMOS |
| Cadre pe secunda | Maxim 30 FPS la 8MP, H.265/H.264 |
| Rezolutii video | 3840x2160, 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Tip lentila | Varifocala motorizata, DC auto iris, corectie IR |
| Distanta focala | 3.2 - 10.2 mm |
| Zoom optic | 3.2x |
| Diafragma | F1.6 Wide - F3.1 Tele |
| Unghi vizualizare orizontal | 104 - 31 grade |
| Unghi vizualizare vertical | 55 - 17 grade |
| Unghi vizualizare diagonal | 124 - 35 grade |
| Distanta minima focalizare | 1.2 m |
| Control focalizare | Simple Focus |
| Rotire Pan | 0 - 350 grade |
| Inclinare Tilt | -35 pana la +70 grade |
| Rotire Rotate | 0 - 355 grade |
| Iluminare minima color | 0.06 Lux, F1.6, 1/30 sec, 30 IRE |
| Iluminare minima alb-negru | 0.006 Lux, F1.6, 1/30 sec, 30 IRE |
| Iluminare infrarosu | Da, IR LED |
| Distanta iluminare IR | 30 m |
| Lungime unda IR | 850 nm |
| Day and Night | Auto ICR |
| WDR | 120 dB |
| Compensare lumina | BLC, WDR, SSDR |
| Reducere zgomot imagine | WiseNR II bazat pe AI, SSNR V |
| Control castig | Low, Middle, High |
| Balans de alb | ATW, AWC, Manual, Indoor, Outdoor |
| Corectie distorsiune lentila | LDC |
| Viteza obturator electronic | 1/5 - 1/12000 secunde |
| Rotire imagine | Flip, Mirror, Hallway View 90/270 grade |
| Analiza video AI | Da, procesor NPU |
| Detectare obiecte AI | Persoane si vehicule |
| Clasificare vehicule | Autoturisme, autobuze, camioane, motociclete, biciclete |
| Detectare miscare | Da, pana la 8 zone poligonale |
| Linie virtuala | Traversare si directie |
| Zona virtuala | Loitering, Intrusion, Enter, Exit |
| Alte functii analiza | Defocus Detection, Tampering, Appear, Disappear |
| Business Intelligence | People Counting, Queue Management, Heatmap, Vehicle Counting |
| Zone confidentialitate | 32 zone, patrulatere |
| Functie DetectionShot | Da |
| Compresie video | H.265, H.264, MJPEG |
| Compresie inteligenta | WiseStream III bazat pe AI |
| Control bitrate | CBR, VBR |
| Profiluri streaming | Maximum 5 |
| Utilizatori Unicast | Maximum 20 |
| Multicast | Da |
| Interfata retea | RJ-45, 10/100BASE-T |
| Protocoale | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, DHCP, FTP, SMTP, SNMP, DNS, DDNS, QoS, UPnP, MQTT |
| Compatibilitate ONVIF | Profile S, G, T, M |
| Interfata programare | SUNAPI, Hanwha Vision Open Platform |
| Conectare directa Cloud | Da |
| Intrare audio | Mic In / Line In, cablu optional |
| Iesire audio | Line Out, cablu optional |
| Compresie audio | G.711, G.726, AAC-LC |
| Intrari alarma | 1, prin cablu optional |
| Iesiri alarma | 1, prin cablu optional |
| Stocare | microSD, microSDHC, microSDXC, NAS |
| Slot card memorie | 1 |
| Capacitate maxima microSD | 256 GB |
| Memorie RAM | 2 GB |
| Memorie Flash | 1 GB |
| Securitate firmware | Secure Boot, firmware criptat si semnat |
| Autentificare retea | IEEE 802.1X |
| Comunicatii securizate | HTTPS, WSS |
| Criptare stocare SD | AES-256 |
| Control acces | Pe baza de adrese IP |
| Alimentare | PoE IEEE 802.3af, Class 3 |
| Consum tipic | 5.3 W |
| Consum maxim | 12.95 W |
| Temperatura functionare | -30 pana la +55 grade Celsius |
| Umiditate functionare | 0 - 100% RH, cu condens |
| Temperatura depozitare | -50 pana la +60 grade Celsius |
| Grad protectie | IP66 |
| Rezistenta impact | IK10 |
| Material carcasa | Aluminiu, cupola cu strat dur de protectie |
| Culoare | Alb |
| Cod culoare | RAL9003 |
| Dimensiuni | Diametru 140 x 110.2 mm |
| Greutate | 875 g |
| Certificari si standarde | CE, UKCA, FCC, UL 62368-1, IEC 62471, IEC 60529, IEC 62262 |
Descarca de aici documentatia necesara:
