| Senzor imagine | 1/2.9" Progressive Scan CMOS |
| Rezolutie maxima | 1920 × 1080 |
| Iluminare minima | Color: 0.01 Lux @ (F1.6, AGC ON), Alb/Negru: 0 Lux cu IR |
| Timp declansare | 1/3 s la 1/100,000 s |
| Zi & Noapte | Filtru IR cut |
| Tip lentila | Focala fixa, 2.8 si 4 mm optional |
| Distanta focala si FOV | 2.8 mm, FOV orizontal 104°, FOV vertical 57°, FOV diagonal 121° |
| Montura lentila | M12 |
| Tip Iris | Fix |
| Diafragma | F1.6 |
| Raza de miscare (Pan) | 0° la 340° |
| Raza de miscare (Tilt) | 0° la 80° |
| Viteza Pan | Pana la 25°/s |
| Viteza Tilt | Pana la 25°/s |
| Tip lumina suplimentara | IR |
| Raza lumina suplimentara | Pana la 30 m |
| Lumina suplimentara inteligenta | Da |
| Lungime de unda IR | 850 nm |
| Flux principal | 50 Hz: 12.5 fps (1920 × 1080, 1280 × 720); 60 Hz: 15 fps (1920 × 1080, 1280 × 720) |
| Flux secundar | 50 Hz: 12.5 fps (640 × 480, 640 × 360); 60 Hz: 15 fps (640 × 480, 640 × 360) |
| Compresie video | Flux principal: H.265/H.264, Flux secundar: H.265/H.264/MJPEG |
| Bit Rate video | 32 Kbps la 8 Mbps |
| Tip H.264 | Baseline Profile, Main Profile, High Profile |
| Tip H.265 | Main Profile |
| Control Bit Rate | CBR, VBR |
| Regiune de interes (ROI) | 1 regiune fixa pentru fluxul principal |
| Tip audio | Sunet mono |
| Rata esantionare audio | 8 kHz/16 kHz |
| Filtrare zgomot ambiental | Da |
| Compresie audio | G.722.1/G.711/MP2L2/PCM/G.726/AAC-LC |
| Bit Rate audio | 16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC) |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Securitate | Protectie parola, parola complexa, autentificare de baza si digest pentru HTTP, TLS 1.1/1.2/1.3, WSSE si autentificare digest pentru Open Network Video Interface |
| Vizualizare simultana live | Pana la 6 canale |
| Protocoale | TCP/IP, DHCP, IPv4 |
| Utilizator/Gazda | Pana la 32 de utilizatori, 3 niveluri de utilizator: administrator, operator si utilizator |
| Client | Hik-Connect, HikCentral Professional, Hik-Partner Pro |
| Browser web | Serviciu local: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Standard comunicare mobila | LTE-FDD, LTE-TDD, UMTS |
| Frecventa comunicare mobila (EU) | LTE-FDD: B1/3/5/7/8/20/28 |
| Frecventa comunicare mobila (IN) | LTE-FDD: B1/3/5/8, LTE-TDD: B34/38/39/40/41 |
| Frecventa comunicare mobila (LA) | LTE-FDD: B2/3/4/5/7/8/28/66 |
| Frecventa comunicare mobila (NA) | LTE-FDD: B2/4/5/12/13/17/66/71, UMTS: B2/4/5 |
| Rata date Uplink si Downlink (EU) | Uplink: 5.1 Mbps, Downlink: 10.3 Mbps |
| Rata date Uplink si Downlink (IN) | Uplink: 5.1 Mbps, Downlink: 10.3 Mbps |
| Rata date Uplink si Downlink (LA) | Uplink: 5.1 Mbps, Downlink: 10.3 Mbps |
| Rata date Uplink si Downlink (NA) | Uplink: 50 Mbps, Downlink: 150 Mbps |
| Tip cartela SIM | Nano SIM |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Comutator zi/noapte | Zi, Noapte, Auto, Programat |
| Imbunatatire imagine | BLC, HLC, 3D DNR |
| Setari imagine | Saturatie, luminozitate, contrast, claritate, gain, balans de alb, ajustabile prin software client sau browser web |
| Tip traductor | PIR + Radar |
| Unghi de detectie | Orizontal: 80°, vertical: 30° |
| Raza de detectie | Pana la 12 m |
| Interfata Ethernet | 1 port RJ45 10 M/100 M auto-adaptiv Ethernet |
| Stocare la bord | Slot card de memorie incorporat, suport microSD/microSDHC/microSDXC, pana la 512 GB |
| Microfon incorporat | 1 microfon incorporat |
| Difuzor incorporat | 1 difuzor incorporat, Consum max. de energie: 1.5 W, nivel max. presiune sonora: 10 cm: 95 dB. |
| Buton Reset | Da |
| Eveniment de baza | Exceptie |
| Conectare | Incarcare pe card de memorie, notificare centru de supraveghere, declansare inregistrare, declansare captura, avertizare sonora |
| Consum energie | Scenarii tipice: 1.85 W (4G activ); Standby: 80 mW; Max.: 7 W |
| Alimentare | 12 VDC ± 25% (*Doar pentru depanare) |

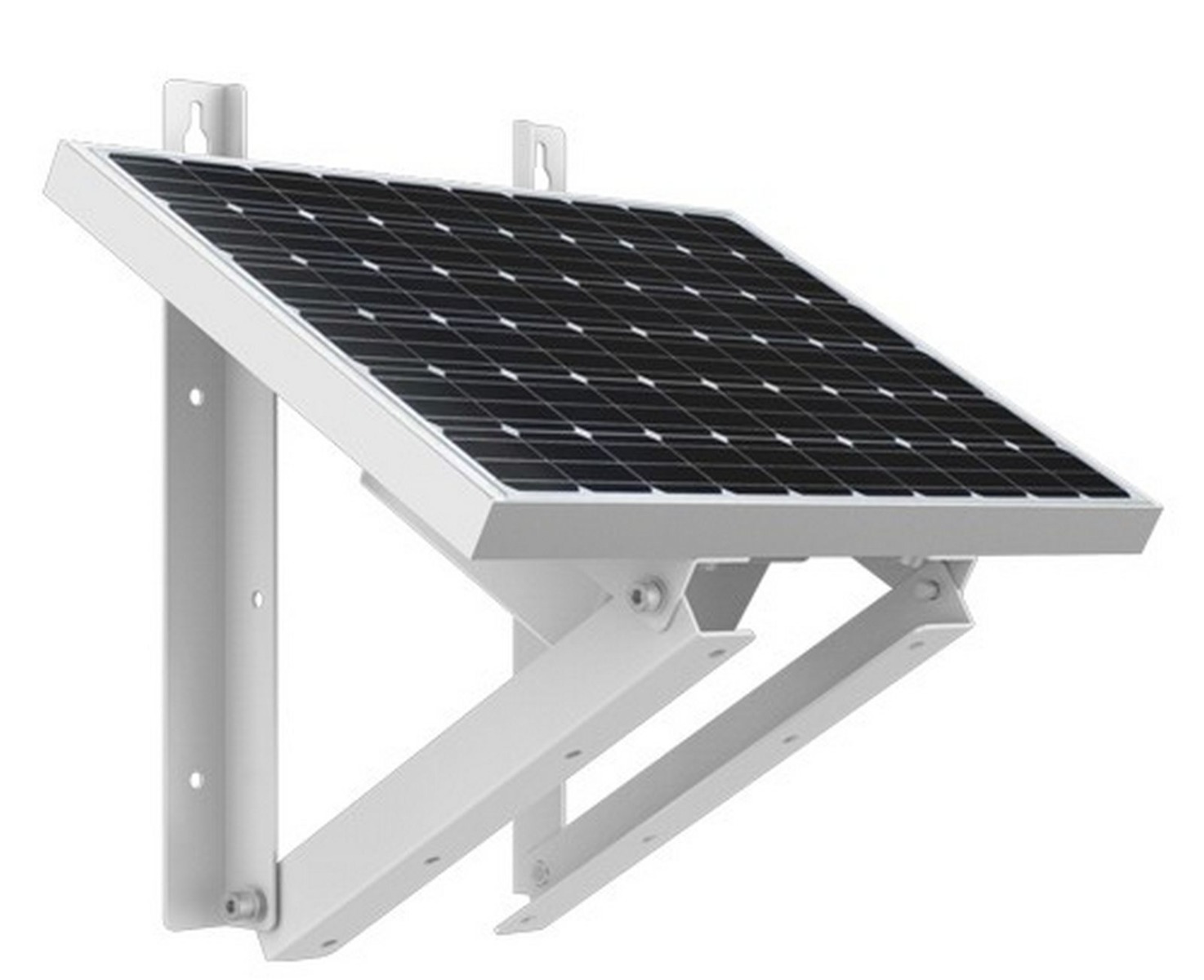

| Panouri solare | 10 W (deviatie: ± 5%) |
| Interfata alimentare | Conector aviatie cu patru nuclee |
| Dimensiuni | 133.1 mm × 177.64 mm × 382.44mm/412.44 mm |
| Material | Plastic |
| Dimensiuni pachet | 375 mm × 305 mm × 398 mm |
| Greutate | Aprox. 850 g |
| Greutate cu pachet | 4700 g |
| Conditii de stocare | -30 °C la 60 °C. Umiditate 95% sau mai putin (fara condens) |
| Conditii de pornire si operare | 0 °C la 50 °C. Umiditate 95% sau mai putin (fara condens) |
| Tip baterie | Litiu ternar |
| Durata de viata ciclu | 27 ore (1.85 W) durata completa a bateriei fara aport solar. |
| Tensiune baterie | 9 V la 12.6 V |
| Capacitate | 50.76 Wh |
| Tensiune maxima de incarcare | 12.6 V |
| Tensiune maxima de iesire | 12.6 V |
| Temperatura de operare (Incarcare) | 0 °C la 45 °C |
| Temperatura de operare (Descarcare) | -20 °C la 55 °C |
| Durata de viata baterie | Peste 800 de cicluri |
| Protectie | IP66: IEC 60529-2013 |
